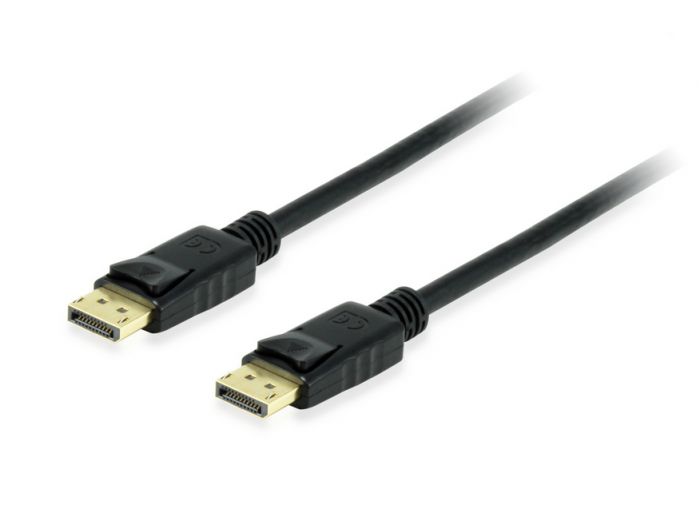

119251 DisplayPort 1.4 Cable, 1.0m, 8K/60Hz
Model Number.
119251
SKU
119251
Data transfer without DSC (display stream compression).
8k: 7680 x 4320 @ 30 Hz.
5k: 5120 × 2880 @ 60 Hz.
4k: 3840 x 2160 @ 144 Hz.
2k: 2560 x 1440 @ 240 Hz.
1080P: 1920 x 1200 @ 240 Hz.
Data transfer with DSC support. (display stream compression).
8k: 7680 x 4320 @ 60 Hz (DSC).
5k: 5120 × 2880 @ 120 Hz (DSC).
4k: 3840 x 2160 @ 240 Hz (DSC).
The equip® DisplayPort Cable is a digital audio and video cable, designed primarily for connections between computer and its display monitor, or a computer and a home-theater system. Intended to replace VGA, DVI and HDMI cables, By supporting a maximum bandwidth of 32.4 Gbps, content up to 8K Ultra HD (7680 x 4320 @ 60 Hz) resolution can be displayed
| Logistics Data. | |
|---|---|
| Harmonized System (HS) code. | 854442 |
| Customs product code (TARIC). | 8544421000 |
| Miscellaneous. | |
| Max. Resolution. | 8K/60Hz |
| Connector 1. | DisplayPort, male |
| Connector 2. | DisplayPort, male |
| Physical Specifications. | |
| Cable Length. | 1m |
| Dimensions (W x D x H). | 7 x 7 x 1000 mm |
| Product weight (kg). | 0,068 |
| System Specifications. | |
| Conductor material. | Copper |
| Conductor size (AWG). | WG |
| Data Rate. | 32.4Gbps |
| DisplayPort version. | 1.4 |
| Cable Jacket material. | PVC |
| Standards. | DisplayPort 1.4 |
| Others. | |
| Approval and Compliance. |
CE , RoHS |
| Package Contents. | DisplayPort 1.4 Cable |
| General. | |
| Color. | Black |
| EAN. | 4015867223840 |
| Model Number. | 119251 |
Download PDF
