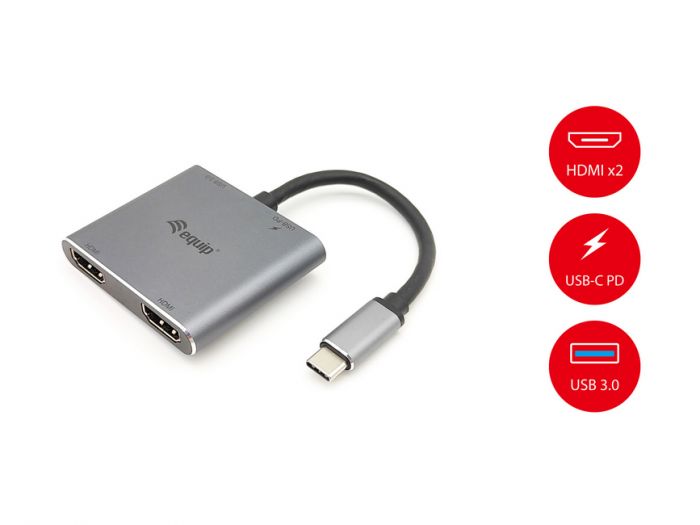

133484 USB-C 4 in 1 Dual HDMI Adapter, USB 3.0, 100W USB PD
Model Number.
133484
SKU
13348407101
**Note:
Mac OS does not support two different screens. Windows operating system
supports both SST and MST mode. If you are not sure how to make the settings,
please contact us. USB-C port must support DP alternate mode (Alt) or
DisplayPort In this case, the DP logo next to the port is usually displayed,
and not all USB-C ports/systems support alternate mode.
The equip® MST hub lets you connect two HDMI monitors to your USB-C computer. MST works on any Windows® device that supports DP Alt Mode over USB-C. The USB-C HDMI hub is powered by the USB-C port, so you don't require an additional power adapter
| Port Configuration | |
|---|---|
| HDMI out | 2 |
| Logistics Data. | |
| Harmonized System (HS) code. | 847180 |
| Customs product code (TARIC). | 8471800000 |
| Features 1. | |
| Angled Plug. | No |
| Miscellaneous. | |
| Max. Resolution. | 4K/30Hz |
| Connector 1. | USB-C, male |
| Connector 2. | HDMI-A, female |
| Physical Specifications. | |
| Cable Length. | 0.15m |
| Dimensions (W x D x H). | 56 x 10 x 180 mm |
| Product weight (kg). | 0.06 |
| System Specifications. | |
| USB Power Delivery (PD). | 100W |
| Data Rate. | 5Gbps |
| Material. | Aluminum |
| Port Configuration. | HDMI x 2 , USB-C PD x 1, USB 3.0 x 1 |
| Standards. | HDMI 2.0, USB 3.2 Gen 1 |
| Video Output Port. | HDMI |
| Others. | |
| Approval and Compliance. | CE, RoHS |
| Operating temperature. | 0°C ~ 40°C |
| Compatible operating systems. |
Windows XP/Vista/7/8/10/11 Mac OS 10.5 or above Android 5.0 or above |
| Package Contents. |
USB-C 4 in 1 Dual HDMI Adapter Quick Installation Guide |
| General. | |
| Color. | Silver |
| EAN. | 4015867225684 |
| Model Number. | 133484 |
