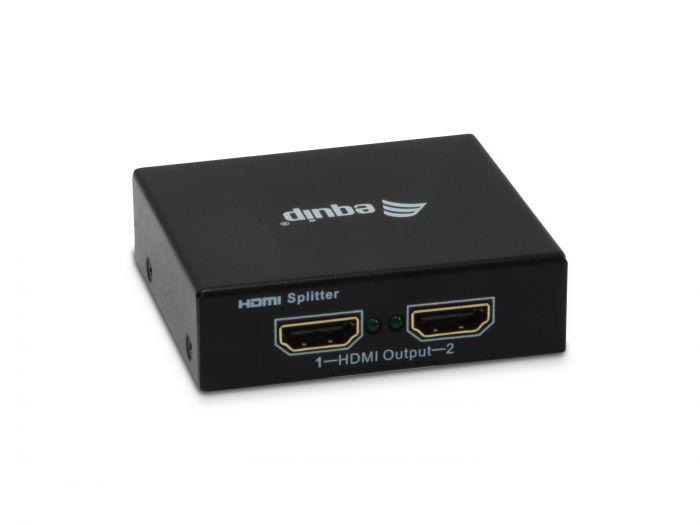

2-Port HDMI 1.4 Splitter, 4K/30Hz 332712

Model Number.

332712

SKU

332712

Duplicates a HD digital audio/video signal up to 2 x HDMI output

HDMI 1.4 compatible and Full 3D

Supports 3D format video transmission

Compatible to HDCP 1.4

Compatible with a bandwidth of 3.4Gbps / 340MHz per channel (10.2Gbps Total)

Supports video resolutions up to 4K/30Hz

Supports Deep Color: 36bit (12 bit per channel)

Supports Auto EDID

Maternal: Aluminum casing

Included power adapter

Details

The equip 2-Port HDMI Splitter distributes one video stream to two displays, bringing synchronized high-definition video to conventions, home theaters, shopping areas, and campuses with ease.

Specifications

More Information
Port Configuration
HDMI out	2
HDMI in	1
Logistics Data.
Harmonized System (HS) code.	854370
Customs product code (TARIC).	8543709099
System Specifications.
Audio format.	DTS-HD/Dolby-true-HD/LPCM 7.1/ DTS/Dolby AC3/DSD
Frequency band.	2.97Gbps
Material.	Aluminum
Power supply.	Power adapter 5V/1A
Standards.	HDMI 1.4
Video format.	24bit/deep color 30bit,36bit, 48bit
Others.
Approval and Compliance.	RoHS, CE
Operating temperature.	-10°C ~ 65°C
Package Contents.	2-Port HDMI Splitter Power adapter User Manual Quick Installation Guide
General.
Color.	Black
EAN.	4015867161944
Model Number.	332712
Physical Specifications.
Dimensions (W x D x H).	70 x 60 x 20 mm
Product weight (kg).	0,3
