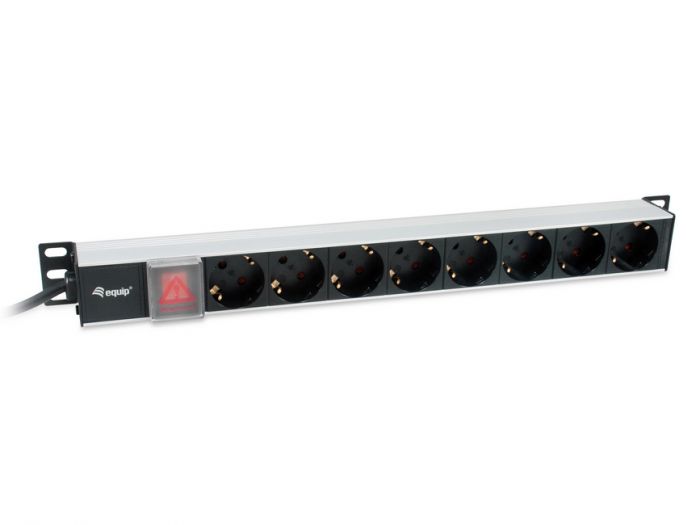

333308 8-Outlet German Power Distribution Unit, Aluminum Shell, 3m

Model Number.

333308

SKU

33330807101

8 x DIN49440 (Schuko)

Power plug : Schuko CEE7/7 90° Angled

Rating: 250V 50/60Hz / 16A

Current rating: 16A

Maximum power: 3500W

Material: Aluminum

With ON/OFF switch

Cable SPEC:H05VV-F 3G 1.5 mm² x3m

1U Horizontal installation

19" Bracket rear install at back side

Details

The Equip® Power Distribution Unit is a sturdily-built product designed to distribute clear and crisp electricity. The product is thoroughly tested to ensure the functionality and reliability. Attached with an 1.8m cable, easy-to-install mechanical design, this is the ideal choice for the 19" cabinet system installation.

Specifications

More Information
Logistics Data.
Harmonized System (HS) code.	853669
Customs product code (TARIC).	8536699083
Miscellaneous.
Shell material.	Aluminum
Outlets.	Schuko Outlets
Plug type.	Schuko CEE7/7 90° Angled
Physical Specifications.
Cable Length.	3m
Dimensions (W x D x H).	482.6 x 45 x 45 mm
Product weight (kg).	0.91
System Specifications.
Mount.	19" rack mount
Power input.	250V 50/60Hz / 16A
Others.
Approval and Compliance.	CE, RoHS
Package Contents.	8-Outlet German Power Distribution Unit Quick Installation Guide Screws kits
General.
Color.	Silver
EAN.	4015867238813
Model Number.	333308
