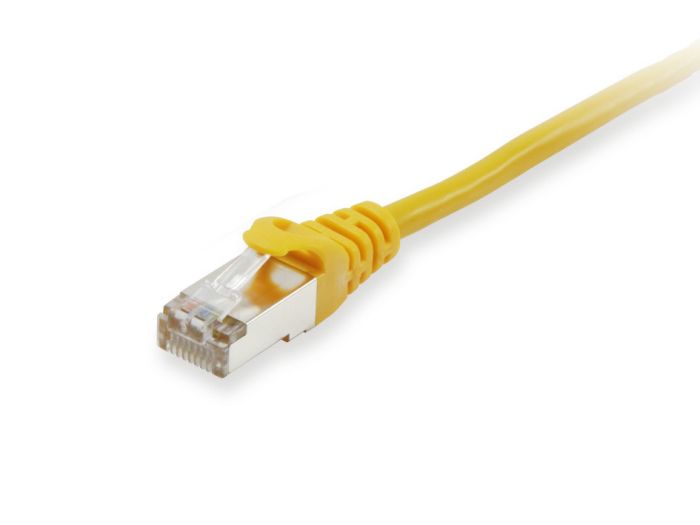

606305 Cat.6A S/FTP Patch Cable, RJ45 Male to RJ45 Male, 3.0m, 500MHz, 10Gbps, PoE/PoE+, LSZH, Ethernet LAN Network Cable, Yellow
The Cat.6A S/FTP Patch Cable is designed to deliver stable 10 Gigabit Ethernet performance with enhanced shielding for professional network environments.
Featuring RJ45 male connectors on both ends, this Cat.6A patch cable is suitable for short-distance connections between switches, servers, patch panels, and network devices. It supports up to 500MHz bandwidth with data transmission speeds of up to 10Gbps and is compatible with PoE and PoE+ applications.
The S/FTP construction combines foil and braided shielding with PIMF (pairs in metal foil) to reduce EMI/RFI interference and crosstalk. Stranded bare copper conductors ensure signal stability and flexibility, while the LSZH/LSOH jacket supports safer indoor installations. The molded boot with strain relief enhances durability, and the cable complies with ISO/IEC 11801, EN 50173, and RoHS standards.
| Logistics Data. | |
|---|---|
| Harmonized System (HS) code. | 854442 |
| Customs product code (TARIC). | 8544421000 |
| Features 1. | |
| Angled Plug. | No |
| Flat cable. | No |
| Shielded. | Yes |
| Miscellaneous. | |
| Shielding. | S/FTP |
| Connector 1. | RJ45 male |
| Connector 2. | RJ45 male |
| Others. | |
| Approval and Compliance. | RoHS |
| Operating temperature. | -20°C ~ 60°C |
| Package Contents. | Cat.6A S/FTP Patch Cable |
| General. | |
| Color. | Yellow |
| EAN. | 4015867204498 |
| Model Number. | 606305 |
| Physical Specifications. | |
| Cable Length. | 3m |
| Dimensions (W x D x H). | 8.34 x 11.68 x 3000 mm |
| Product weight (kg). | 0,101 |
| System Specifications. | |
| Category. | Cat.6A |
| Conductor material. | Copper |
| Conductor size (AWG). | 26AWG |
| Cable Jacket material. | LSZH |
