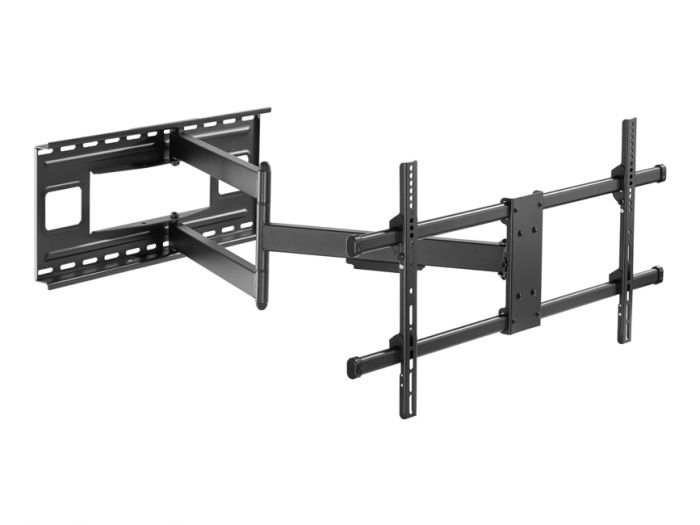

650327 43"-80" Long Arm Full Motion TV Wall Mount Bracket
Model Number.
650327
SKU
65032707101
The equip® TV Wall Mount Bracket is a compact but sturdy product that ensures a reliable installation of your LCD/Plasma TV. Follow the graphic guide included in the package, you can install your TV on your own with ease. The wall bracket fits most of the wall materials- brick, concrete and wood, making the ideal choice for you to set up your screens.
| Logistics Data. | |
|---|---|
| Harmonized System (HS) code. | 852990 |
| Customs product code (TARIC). | 8529909700 |
| System Specifications. | |
| Mounting hole pattern | Standard VESA |
| Anti-theft. | No |
| Cable management. | Yes |
| Bracket type. | Tiltable and Swivel |
| Installation. | Double Stud(406mm/450mm/600mm),Solid Wall |
| Distance to wall (Profile). | 82~1015mm |
| Load Capacity (kg). | 50kg |
| Material. | Stainless Steel |
| Pan (Swivel) range. | +90°~-90° |
| Screens support quantity. | 1 |
| Support Curved TV (Monitors). | Yes |
| Tilt range. | +5°~-15° |
| VESA compatibility. |
200x200,300x200,300x300, 400x200,400x300,400x400, 600x400,700x400,800x400 |
| Mount. | Wall mount |
| Others. | |
| Approval and Compliance. | ROHS |
| Package Contents. |
650327 Manual screws kits |
| General. | |
| Color. | Black |
| EAN. | 4015867225400 |
| Model Number. | 650327 |
| Physical Specifications. | |
| Dimensions (W x D x H). | 885 x 430 x 1015 mm |
| Product weight (kg). | 11.46 |
