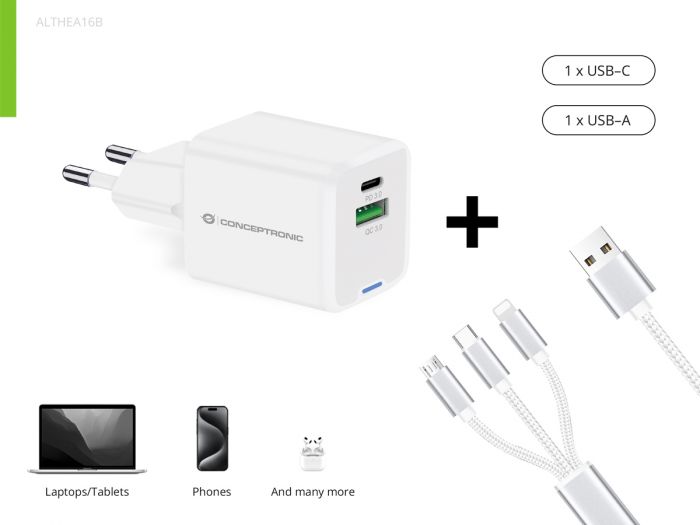

ALTHEA16W 2-Port 33W GaN USB PD Charger with 3-in-1 Charging Cable, USB-C x 1, USB-A x 1, QC 3.0, PPS, PD 3.0
This charger leverages advanced Gallium Nitride (GaN) technology to provide up to 33W of total power, delivering faster and more efficient charging. It features a versatile port selection with 1 USB-C port supporting USB Power Delivery (PD) 3.0 and 1 USB-A port with Quick Charge (QC) 3.0, allowing for simultaneous charging of multiple devices with different power needs. The charger supports a wide range of output options from 3.3V to 20.0V, ensuring compatibility with a variety of devices, including smartphones and laptops. Enhanced safety is ensured with built-in protections against overload, short circuiting, and overheating. Additionally, it incorporates USB Power Delivery (PD) 3.0 and Quick Charge (QC) 3.0 technologies for rapid charging, along with Programmable Power Supply (PPS) compliance to maximize efficiency and minimize heat generation. For added convenience, the charger includes a 1.5m 3.0A 3-in-1 cable.
| Packaging Content. | |
|---|---|
| Cables included. | 3 in 1 (Lightnin, USB-C, Micro-USB) |
| Power Plug Type. | EU |
| Ports & Interfaces. | |
| USB Power Delivery revision | 3.0 |
| Performance 1. | |
| Number of outputs. | 2 |
| USB Type-A ports quantity. | 1 |
| Fast charging technology. | Quick Charge 3.0, Power Delivery 3.0, Programmable Power Supply (PPS) |
| USB Type-C ports quantity. | 1 |
| Programmable power supply (PPS) (YES/NO). | Yes |
| Housing Material. | Polycarbonate (PC) |
| Number of simultaneously connected devices (max). | 2 |
| Port 1 Power Output. | USB-C output: DC 5.0V/3.0A, 9.0V/3.0A, 12.0V/2.5A, 15.0V/2.0A, 20.0V/1.5A (PD); 3.3-16.0V/2.0A, 3.3-11.0V/3.0A (PPS) |
| Port 2 Power Output. | USB-A output: DC 5.0V/3.0A, 9.0V/3.0A, 12.0V/2.5A, 20.0V/1.5A (QC 3.0) |
| Features 2. | |
| Cable length. | 150 centimeter |
| Logistics Data. | |
| Harmonized System (HS) code. | 850440 |
| Power. | |
| Maximum AC Input. | 240 volt |
| Minimum AC Input. | 100 volt |
| Input current. | 0.8 ampere |
| Maximum power. | 33 watt |
| Power Protection Features. | Over current, Over power, Short circuit |
| Sustainability. | |
| Sustainability Compliance. | No |
| Operational Conditions. | |
| Operating temperature (T-T) Max. | 40 celsius |
| Operating temperature (T-T) Min. | 0 celsius |
| Storage relative humidity (H-H) Max. | 90% |
| Storage relative humidity (H-H) Min. | 5% |
| Operating relative humidity (H-H) Max. | 95% |
| Operating relative humidity (H-H) Min. | 5% |
| Storage temperature (T-T) Max. | 80 celsius |
| Storage temperature (T-T) Min. | -20 celsius |
| Packaging Data. | |
| Package Depth. | 37 millimeter |
| Package Height. | 194 millimeter |
| Package Width. | 95 millimeter |
| Product Gross Weight. | 15 gram |
| General. | |
| Color. | White |
| EAN. | 4015867236482 |
| Model Number. | ALTHEA16W |
| Physical Specifications. | |
| Product Height. | 33.5 millimeter |
| Product Width. | 35 millimeter |
| Product Depth. | 72 millimeter |
| Product Net Weight. | 54 gram |
| Others. | |
| Approval and Compliance. | CE, ERP, RoHS, REACH |
| Package Content. | Quick installation guide, 3-in-1 USB Cable |
