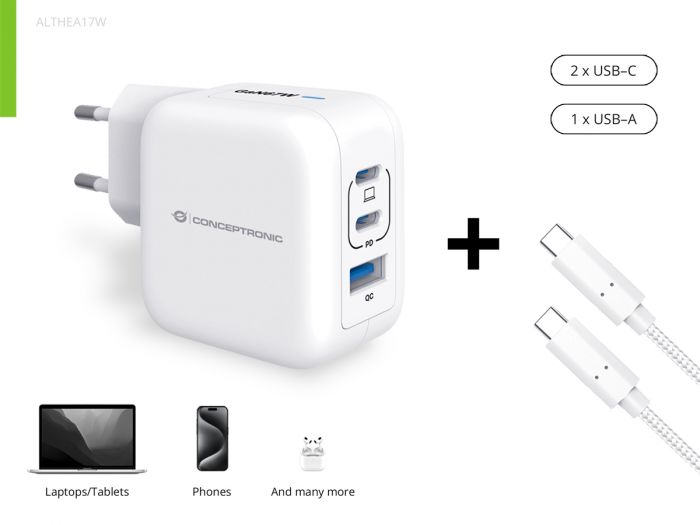

ALTHEA17W 67W 3-Port GaN USB PD Charger, USB-C Charging Cable incl., USB-C x 2, USB-A x 1, QC 3.0, PPS, PD 3.0
Model Number.
ALTHEA17W
SKU
120550603101
This charger features cutting-edge Gallium Nitride (GaN) technology, delivering up to 67W of total power for faster and more efficient charging. It includes 3 versatile ports: 2 USB-C ports with USB Power Delivery (PD) 3.0 and 1 USB-A port with Quick Charge (QC) 3.0, allowing you to charge multiple devices simultaneously with varying power requirements. The charger supports output options ranging from 3.3V to 20.0V across its ports, ensuring broad compatibility with devices from smartphones to laptops. Enhanced safety features protect against overload, short circuiting, and overheating, safeguarding both the charger and connected devices. Additionally, it incorporates USB PD 3.0 and QC 3.0 technologies, along with Programmable Power Supply (PPS) compliance to maximize charging efficiency and minimize heat. For added convenience, it comes with a 1.5m 3.0A USB-C to USB-C cable.
| Technical Details. | |
|---|---|
| Number of cartons per pallet. | 48 piece |
| Package Volume. | 495 cubic_centimeter |
| Pallet Net Depth. | 800 millimeter |
| Pallet Net Width. | 1200 millimeter |
| Pallet Net Height. | 1460 millimeter |
| Packaging Content. | |
| Cables included. | USB Type-C |
| Power Plug Type. | EU |
| Ports & Interfaces. | |
| USB Power Delivery revision | 3.0 |
| Performance 1. | |
| Number of outputs. | 3 |
| USB Type-A ports quantity. | 1 |
| Fast charging technology. | Quick Charge 3.0, Power Delivery 3.0, Programmable Power Supply (PPS) |
| USB Type-C ports quantity. | 2 |
| Programmable power supply (PPS) (YES/NO). | Yes |
| Housing Material. | Polycarbonate (PC) |
| Number of simultaneously connected devices (max). | 3 |
| Port 1 Power Output. | USB-C1 output: DC 5.0V/3.0A, 9.0V/3.0A, 12.0V/3.0A, 15.0V/3.0A, 20.0V/3.35A (PD); 3.3-11.0V/4.05A (PPS) |
| Port 2 Power Output. | USB-C2 output: DC 5.0V/3.0A, 9.0V/2.22A, 12.0V/1.67A (PD); 3.3-11.0V/1.8A (PPS) |
| Port 3 Power Output. | USB-A output: DC 5.0V/3.0A, 9.0V/2.0A, 12.0V/1.5A (QC 3.0) |
| Features 2. | |
| Cable length. | 150 centimeter |
| Logistics Data. | |
| Harmonized System (HS) code. | 850440 |
| Customs product code (TARIC). | 8504408390 |
| Quantity per Pallet. | 1920 piece |
| Power. | |
| Maximum AC Input. | 240 volt |
| Minimum AC Input. | 100 volt |
| Input current. | 1.5 ampere |
| Maximum power. | 67 watt |
| Power Protection Features. | Over current, Over power, Short circuit |
| Sustainability. | |
| Sustainability Compliance. | No |
| Operational Conditions. | |
| Operating temperature (T-T) Max. | 35 celsius |
| Operating temperature (T-T) Min. | 0 celsius |
| Storage relative humidity (H-H) Max. | 90% |
| Storage relative humidity (H-H) Min. | 10% |
| Operating relative humidity (H-H) Max. | 80% |
| Operating relative humidity (H-H) Min. | 20% |
| Storage temperature (T-T) Max. | 80 celsius |
| Storage temperature (T-T) Min. | -20 celsius |
| Packaging Data. | |
| Quantity per Pack. | 1 piece |
| Package Depth. | 36 millimeter |
| Package Height. | 110 millimeter |
| Package Width. | 125 millimeter |
| Product Gross Weight. | 29 gram |
| Physical Specifications. | |
| Dimensions (W x D x H). | 54 x 54 x 32 mm |
| Product Height. | 32 millimeter |
| Product Width. | 54 millimeter |
| Product Depth. | 54 millimeter |
| Product Net Weight. | 128 gram |
| Product weight (kg). | 0.128 |
| System Specifications. | |
| Power input. | AC 100.0-240.0V, 1.5A max, 50-60Hz |
| Others. | |
| Approval and Compliance. | CE, ERP, RoHS |
| Operating humidity. | 20% RH ~ 80% RH |
| Operating temperature. | 0°C ~ 35°C |
| Package Content. | Quick installation guide, USB cable (C-C) |
| Storage humidity. | 10% RH ~ 90% RH |
| Storage temperature. | -20°C ~ 80°C |
| Package Contents. |
ALTHEA17W 1.5m 3.0A USB-C to USB-C cable Multilingual quick installation guide |
| General. | |
| Color. | White |
| EAN. | 4015867236505 |
| Model Number. | ALTHEA17W |
