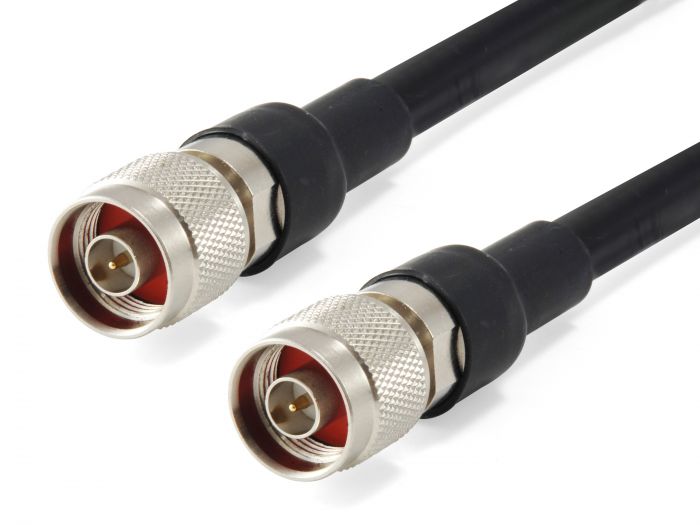

ANC-4150 5m 400 Series N Male to N Male Antenna

Model Number.
ANC-4150
SKU
54046807
  • Dual-band Wi-Fi ready: For IEEE 802.11a/b/g/n/ac applications in the 2.4/5 GHz bands.
  • Omnidirectional gain: 5 dBi / 8 dBi coverage for broader, more uniform signal distribution.
  • Low-loss runs: CFD-400 low-loss coaxial cable minimizes attenuation over longer distances.
  • Pro connectors: N-male to N-male—ideal for antennas, outdoor APs, CPE, and wireless bridges.
  • The LevelOne CFD 400 low-loss coaxial cable delivers high performance with excellent flexibility for clean signal runs in both indoor and outdoor installations. Engineered for low attenuation and general-purpose RF use, it’s ideal for antenna extensions and long cable routes where consistent throughput matters. Built for weatherability, the CFD 400 features UV-resistant materials that stand up to prolonged sun exposure and harsh environments, helping maintain signal integrity over time. Choose LevelOne CFD 400 when you need a durable, easy-to-route, low-loss cable that’s ready for the elements.
    More Information
    Logistics Data.
    Harmonized System (HS) code. 854442
    Customs product code (TARIC). 8544429090
    Features 1.
    Features. Low-loss cable assemblies
    System Specifications.
    Binder. Sealed aluminum mylar tape
    Cable loss. < -2.0dBi
    Capacitance. 23,9
    Conductor material. Copper
    Conductor resistance (ohm). 1.67Ω
    Conductor size (AWG). 2.74 mm
    Diameter (mm). 50
    Frequency band. 0~6GHz
    Impedance (ohm). 50
    Insulation material. PFE
    Cable Jacket material. PE
    Standard. CFD 400
    VSWR. 1000~2000MHZ ≤1.2 , 3000~6000MHZ ≤1.5
    Others.
    Operating temperature. -30°C ~ 60°C
    Package Contents. ANC-4150
    General.
    Color. Black
    EAN. 4015867203965
    Model Number. ANC-4150
    Physical Specifications.
    Cable Length. 5m
    Dimensions (W x D x H). 235 x 235 x 50 mm
    Outer diameter of insulation. 7.24mm
    Insulation thickness. 2.2mm
    Outer diameter of jacket. 10.3mm
    Product weight (kg). 0.59
