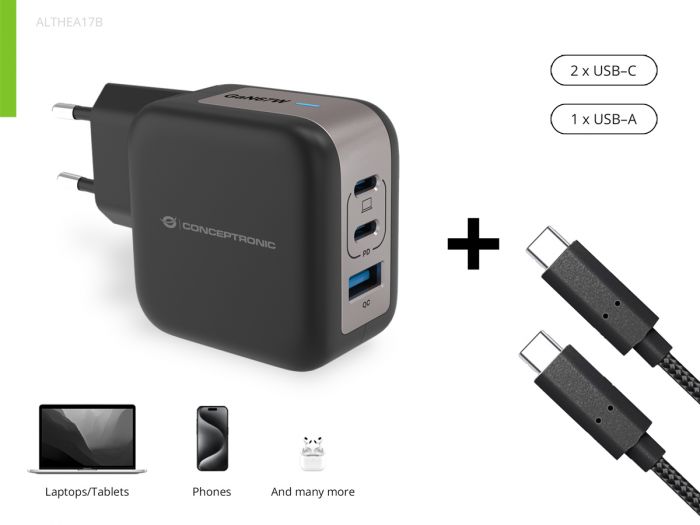

ALTHEA17B 3-Port 67W GaN USB PD Charger with USB-C Charging Cable, USB-C x 2, USB-A x 1, QC 3.0, PPS, PD 3.0
This charger leverages advanced Gallium Nitride (GaN) technology to deliver up to 67W of total power, ensuring faster and more efficient charging for your devices. It features a versatile port selection with 3 ports: 2 USB-C ports equipped with Power Delivery (PD) 3.0 and 1 USB-A port with Quick Charge (QC) 3.0. This setup allows for simultaneous charging of multiple devices with varying power requirements. The charger supports a broad range of output options from 3.3V to 20.0V, making it compatible with a wide array of devices, from smartphones to laptops. Enhanced safety is provided through built-in protections against overload, short-circuiting, and overheating, safeguarding both the charger and connected devices. Additionally, it incorporates USB Power Delivery (PD) 3.0 and Quick Charge (QC) 3.0 technologies for rapid charging, along with Programmable Power Supply (PPS) compliance to optimize charging efficiency and reduce heat generation. For added convenience, the charger comes with a 1.5m 3.0A USB-C to USB-C cable.
| Packaging Content. | |
|---|---|
| Cables included. | USB Type-C |
| Power Plug Type. | EU |
| Ports & Interfaces. | |
| USB Power Delivery revision | 3.0 |
| Performance 1. | |
| Number of outputs. | 3 |
| USB Type-A ports quantity. | 1 |
| Fast charging technology. | Quick Charge 3.0, Power Delivery 3.0, Programmable Power Supply (PPS) |
| USB Type-C ports quantity. | 2 |
| Programmable power supply (PPS) (YES/NO). | Yes |
| Housing Material. | Polycarbonate (PC) |
| Number of simultaneously connected devices (max). | 3 |
| Port 1 Power Output. | USB-C1 output: DC 5.0V/3.0A, 9.0V/3.0A, 12.0V/3.0A, 15.0V/3.0A, 20.0V/3.35A (PD); 3.3-11.0V/4.05A (PPS) |
| Port 2 Power Output. | USB-C2 output: DC 5.0V/3.0A, 9.0V/2.22A, 12.0V/1.67A (PD); 3.3-11.0V/1.8A (PPS) |
| Port 3 Power Output. | USB-A output: DC 5.0V/3.0A, 9.0V/2.0A, 12.0V/1.5A (QC 3.0) |
| Features 2. | |
| Cable length. | 150 centimeter |
| Logistics Data. | |
| Harmonized System (HS) code. | 850440 |
| Power. | |
| Maximum AC Input. | 240 volt |
| Minimum AC Input. | 100 volt |
| Input current. | 1.5 ampere |
| Maximum power. | 67 watt |
| Power Protection Features. | Over current, Over power, Short circuit |
| Sustainability. | |
| Sustainability Compliance. | No |
| Operational Conditions. | |
| Operating temperature (T-T) Max. | 35 celsius |
| Operating temperature (T-T) Min. | 0 celsius |
| Storage relative humidity (H-H) Max. | 90% |
| Storage relative humidity (H-H) Min. | 10% |
| Operating relative humidity (H-H) Max. | 80% |
| Operating relative humidity (H-H) Min. | 20% |
| Storage temperature (T-T) Max. | 80 celsius |
| Storage temperature (T-T) Min. | -20 celsius |
| Packaging Data. | |
| Package Depth. | 36 millimeter |
| Package Height. | 110 millimeter |
| Package Width. | 125 millimeter |
| Product Gross Weight. | 29 gram |
| General. | |
| Color. | Black |
| EAN. | 4015867236512 |
| Model Number. | ALTHEA17B |
| Physical Specifications. | |
| Product Height. | 32 millimeter |
| Product Width. | 54 millimeter |
| Product Depth. | 54 millimeter |
| Product Net Weight. | 128 gram |
| Others. | |
| Approval and Compliance. | CE, ERP, RoHS |
| Package Content. | Quick installation guide, USB cable (C-C) |
