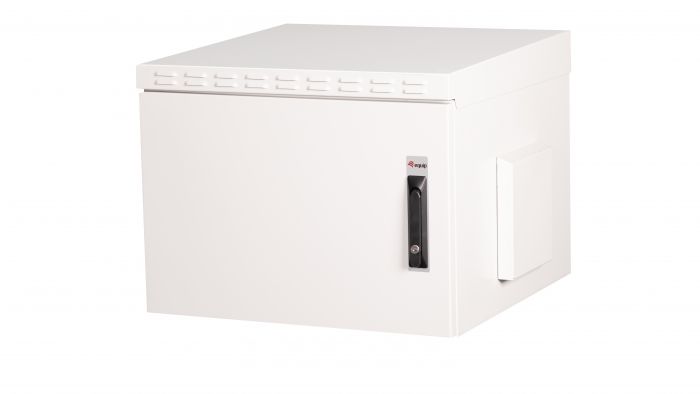

Equip Safe Outdoor 19" Wall Mounted Outdoor Cabinet, 07U, 600x600mm, with Steel Front Door, Assembled, RAL7035 Grey
Model Number.
ESO-07-6060-G
SKU
280202
The "Safe Outdoor" Cabinet Line presents the 483 mm (19") IP55 Outdoor Wall Mount Cabinets, tailored for industrial use. Adhering to the IP55 safety standard as per EN 60529, they offer resistance against both water and dirt infiltration. Enhanced security is ensured with a 3-point-locking system complemented by a lockable swing handle and insulated cable entry points. The cabinets also feature integrated air ventilation slots for fresh air circulation, maintaining protection against water and dust as per IP54 standards. These cabinets are ideal for locations exposed to environmental elements like rain, dust, sleet, snow, and splashing water. For more flexibility, these cabinets can be paired with a plinth for standalone setups. When using the plinth, rear mounting holes can be sealed using plugs sourced from the cabinet's base.
| Design | |
|---|---|
| Wall mountable. | Yes |
| Technical Details. | |
| Number of cartons per pallet. | 16 piece |
| Pallet Net Weight. | 18000 gram |
| Pallet Gross Volume. | 3718000 cubic_centimeter |
| Package Volume. | 11084850 cubic_centimeter |
| Maximum number of stacking cartons. | 16 piece |
| Pallet Net Depth. | 1300 millimeter |
| Pallet Net Width. | 1300 millimeter |
| Pallet Net Height. | 2200 millimeter |
| Packaging Content. | |
| Manual. | No |
| Mounting kit. | No |
| Performance 1. | |
| Key lock. | Yes |
| Housing Material. | Steel |
| Features 2. | |
| Built-in UPS. | No |
| Rack rails. | No |
| Frame type. | Closed |
| Assembly Required. | No |
| Soundproof. | No |
| Castor wheels. | No |
| Rack Type. | Wall mounted rack |
| Rack capacity. | 7U |
| Removable Back Door. | No |
| Removable Front Door. | Yes |
| Back Door Construction. | Steel |
| Front Door Construction. | Steel |
| Side Panel Construction. | Steel |
| Side Panel Key Lock. | No |
| Back Door Key Lock. | No |
| Front Door Key Lock. | Yes |
| Side panels included. | No |
| Rack rail thickness. | 1.5 millimeter |
| Stabilizing foot screw. | No |
| Adjustable stand. | Yes |
| Monitoring. | No |
| Main PDU. | No |
| Product design. | 2-Post |
| Cooling type. | Passive |
| Front Door Opening Angle. | 140 degree |
| Mounting hole shape. | Square |
| Removable Side Panels. | No |
| Logistics Data. | |
| Number of Layers per Pallet. | 4 piece |
| Pallet Gross Weight. | 651280 gram |
| Harmonized System (HS) code. | 853710 |
| Customs product code (TARIC). | 8537109899 |
| Carbon Footprint. | 6.327 kilogram |
| Quantity per Pallet. | 16 piece |
| Sustainability. | |
| Sustainability Compliance. | Yes |
| Packaging Data. | |
| Screws included. | No |
| Wall mounting kit. | Yes |
| Temperature sensor. | No |
| Quantity per Pack. | 16 piece |
| Plinth panel. | No |
| Nuts included. | Yes |
| Number of nuts. | 1 |
| Package Depth. | 630 millimeter |
| Package Height. | 510 millimeter |
| Package Width. | 690 millimeter |
| Grounding kit. | Yes |
| Quick installation guide. | No |
| Product Gross Weight. | 2580 gram |
| Ergonomics. | |
| Adjustable feet. | No |
| Adjustable depth. | No |
| Cable management. | No |
| General. | |
| Color. | Light Grey |
| RAL Code. | RAL7035 |
| EAN. | 4015867232378 |
| Model Number. | ESO-07-6060-G |
| Features 1. | |
| Preassembled. | Yes |
| Physical Specifications. | |
| Rail to Rail Length. | 19 inch |
| Product Height. | 510 millimeter |
| Product Width. | 600 millimeter |
| Product Depth. | 600 millimeter |
| Material Thickness. | 11.5 millimeter |
| Internal Height. | 311 millimeter |
| Internal Width. | 595 millimeter |
| Min. Rack Depth. | 260 millimeter |
| Max. Rack Depth. | 535 millimeter |
| Internal Depth. | 595 millimeter |
| Product Net Weight. | 37000 gram |
| Others. | |
| Package Content. | Grounding set, Gland plate |
