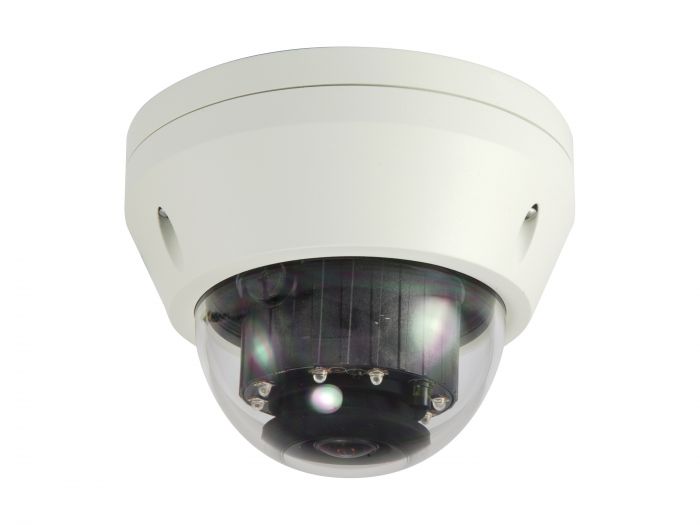

FCS-3306 HUBBLE Fixed Dome IP Camera, H.265, 3-MP
Model Number.
FCS-3306
SKU
57302407
The LevelOne FCS-3306 Fixed Dome Outdoor Camera offers a highly reliable, cost-effective outdoor IP surveillance solution in a low-profile dome mounted casing, which is rated at IP68 and able to withstand outdoor operating conditions such as rain, snow, extreme heat, dust and humidity. The FCS-3306 offers 3-Megapixel resolution, and with 802.3af standard PoE, can use a single Cat.5 cable to run both power and data, making deployments easy and flexible. The dome mounting prevents malicious tampering with the camera, making it a secure and smart choice for all outdoor installations.
| Port Configuration | |
|---|---|
| Fast Ethernet RJ45 | 10/100 Mbps,PoE 802.3af |
| Terminal block | DI/DO, |
| 3.5mm audio in/out | Audio In/Audio Out |
| Logistics Data. | |
| Harmonized System (HS) code. | 852589 |
| Customs product code (TARIC). | 8525890000 |
| Features 1. | |
| Features. | Object Based Motion Detection, Tamper, Shock Detection, Line Crossing*, Enter Area*, Missing Object*, Unattended Object*, Smoke Detection*, Fire Detection* (Some of the algorithms may not be available in the first release, can be upgraded for free later) |
| Miscellaneous. | |
| 2-way audio. | Yes |
| DI/DO. | Yes |
| IR LED for night vision. | Yes |
| Max. Resolution. | 3 Megapixels |
| Resistance. | Weatherproof, Vandalproof |
| IP Camera series. | HUBBLE |
| Camera Type. | Dome |
| Zoom type. | Fixed |
| PoE Supported. | Yes |
| System Specifications. | |
| Angle of view (°). | 129 |
| Image sensor. | 1/2.8 " Progressive Scan CMOS |
| Indicators. | Power |
| IR cut filter. | Yes |
| IR range. | Up to 30 meter |
| Lens. | Fixed focal, f2.1mm, F1.8 |
| Minimum illumination (lux). | Color: 0.1 lux at F1.8 (30 IRE, Max. AGC); B/W: 0 (IR LED on) |
| Power consumption. | 12.95 W (PoE) |
| Power supply. | VDC12V/1A, PoE 802.3af |
| Power supply included. | No |
| Resolution. |
30 fps at 2048 x 1536 60 fps at 1920 x 1080 30 fps at 1280 x 960 60 fps at 1280 x 720 30 fps at 800 x 600 30 fps at 640 x 480 30 fps at 320 x 240 |
| Shutter time. | 1/5-1/64000 |
| Standard. | IPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, Bonjour, UPnP, QoS, SNMP, IEEE 802.1X |
| Supported storage capacity. | 32 GB |
| Video format. | H.265/H.264/MJPEG |
| Others. | |
| Approval and Compliance. | CF/FCC/UL,IK10,IP68 |
| Operating temperature. | -40°C ~ 60°C |
| Supported browsers. | IE 11or newer, Firefox with VLC, Chrome with VLC, Safari with QuickTime |
| Storage temperature. | 0°C ~ 80°C |
| Package Contents. |
FCS-3306 Screw Kit Quick Installation Guide Resource CD (User Manual, Utility, QIG) |
| General. | |
| Color. | White |
| EAN. | 4015867202739 |
| Model Number. | FCS-3306 |
| Physical Specifications. | |
| Dimensions (W x D x H). | 115 x 115 x 87 mm |
| Product weight (kg). | 0,835 |
