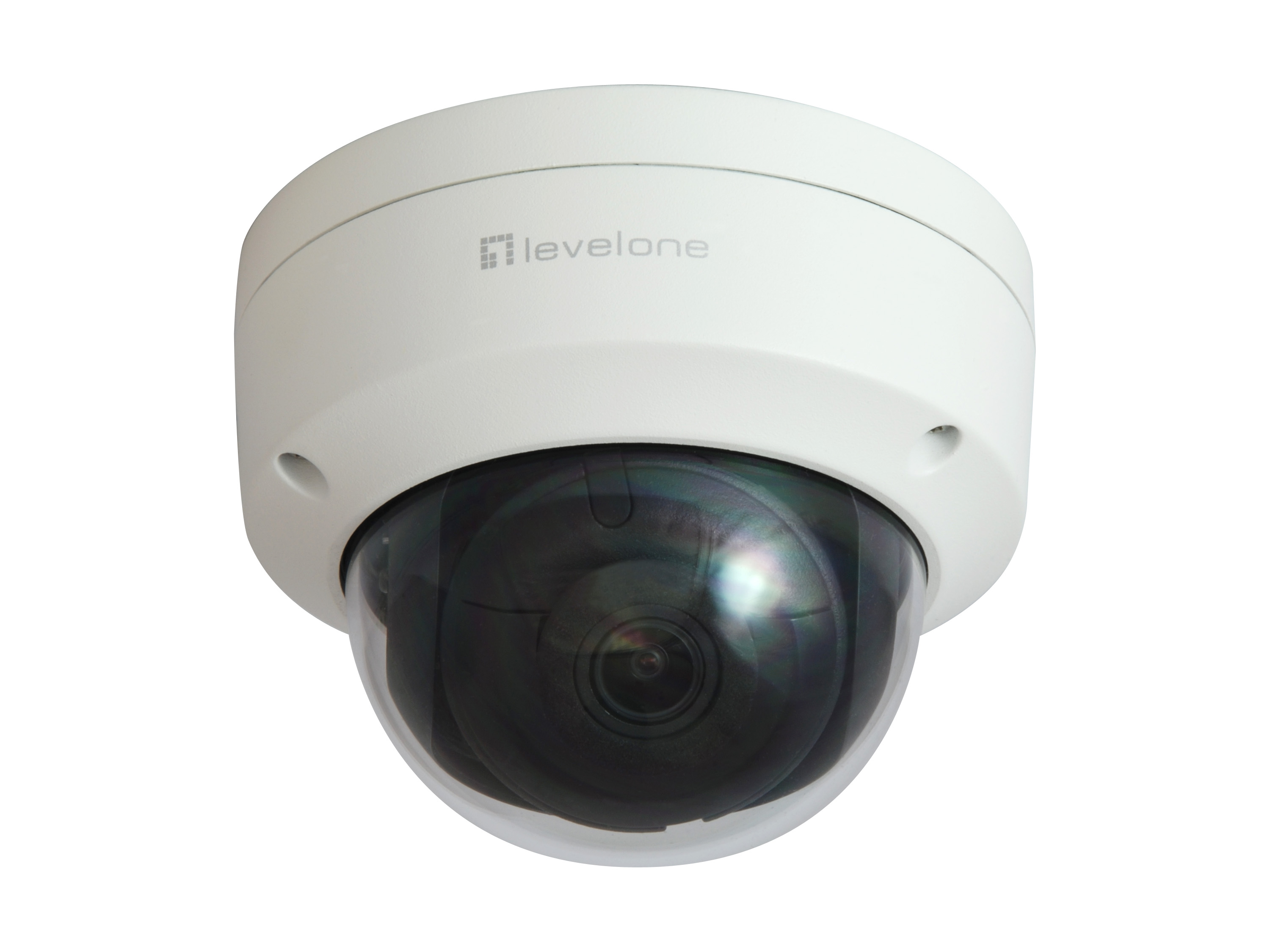

FCS-3404, GEMINI Fixed Dome IP Camera, 6-MP, H.265
Model Number.
FCS-3404
SKU
57305007
The LevelOne FCS-3404 is a fixed-position outdoor camera offering an ultra-reliable, cost-effective solution for outdoor IP surveillance networks, and is rated at IP67 to operate within rain, extreme heat, snow, dust and humid conditions. Offering clear, sharp imagery with 6-Megapixel resolution and the versatility of 802.3af standard PoE to transfer power and data via a single Cat.5 cable, the LevelOne FCS-3404 Should be an essential part of any security deployment that requires smart, reliable outdoor cameras.
| Logistics Data. | |
|---|---|
| Harmonized System (HS) code. | 852589 |
| Customs product code (TARIC). | 8525890000 |
| Features 1. | |
| Features. |
Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark Basic Event: Motion detection (human and vehicle targets classification), video tampering alarm, exception Detection, Face Detection Smart Event: Line crossing detection, intrusion detection SNR: ≥ 52 dB |
| Miscellaneous. | |
| 2-way audio. | Yes |
| DI/DO. | Yes |
| IR LED for night vision. | Yes |
| Max. Resolution. | 6 Megapixels |
| Resistance. | Weatherproof |
| IP Camera series. | GEMINI |
| Camera Type. | Dome |
| Zoom type. | Fixed |
| PoE Supported. | Yes |
| Physical Specifications. | |
| Dimensions (W x D x H). | 110.8 x 110.8 x 84.7 mm (Ø4.4" × 3.3") |
| Product weight (kg). | 0,5 |
| System Specifications. | |
| Angle of view (°). | Horizontal FOV 107°, Vertical FOV 57°, Diagonal FOV 128° |
| Audio format. | G.711/G.722.1/G.726/MP2L2/PCM |
| Image sensor. | 1/2.4" Progressive Scan CMOS |
| Indicators. | Power |
| IR cut filter. | Yes |
| IR range. | Up to 30 meter |
| Lens. | Fixed 2.8mm @F1.6 |
| Minimum illumination (lux). | Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
| Mount. | Ceiling mount |
| Port Configuration. | Power( Ø5.5 mm coaxial power plug)/RJ-45/DIDO Terminal block ,12 VDC, 30 mA /Line IN /OUT (Terminal block), Input_(4.7 KΩ, 3.3 Vpp), Output (3.3 Vpp, 100 Ω) |
| Power consumption. |
12 VDC, 0.6 A, max. 7.5W PoE: (802.3af, 36V to 57V), 0.3 A to 0.2 A, max. 9W |
| Power supply included. | No |
| Resolution. |
Main Stream 50 Hz: 20 fps (3200 × 1800) 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 20 fps (3200 × 1800) 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) Sub Stream 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360) Third Stream 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) |
| Shutter time. | 1/3 s to 1/100,000 s |
| Standard. |
IEEE 802.3 10-BASE-T, Ethernet IEEE 802.3u 100-BASE-TX, Fast Ethernet IEEE 802.3af Power over Ethernet (PoE) IEEE 802.1X Network Access Control TCP(IPv6/v4), UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP,FTP,SAMBA UPnP, SNMP, Bonjour |
| Supported storage capacity. | 128 GB |
| Video format. | Main stream: H.265/H.264 Sub-stream: H.265/H.264/MJPEG |
| Weatherproof rating. | IP-67 |
| Others. | |
| Approval and Compliance. | CF/FCC,IP67 |
| Operating humidity. | 5% RH ~ 95% RH |
| Operating temperature. | -30°C ~ 60°C |
| Supported browsers. |
Plug-in required live view: IE 10, IE 11 Plug-in free live view : Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+ |
| Package Contents. |
QIG Screw Kit |
| General. | |
| Color. | White |
| EAN. | 4015867207710 |
| Model Number. | FCS-3404 |
