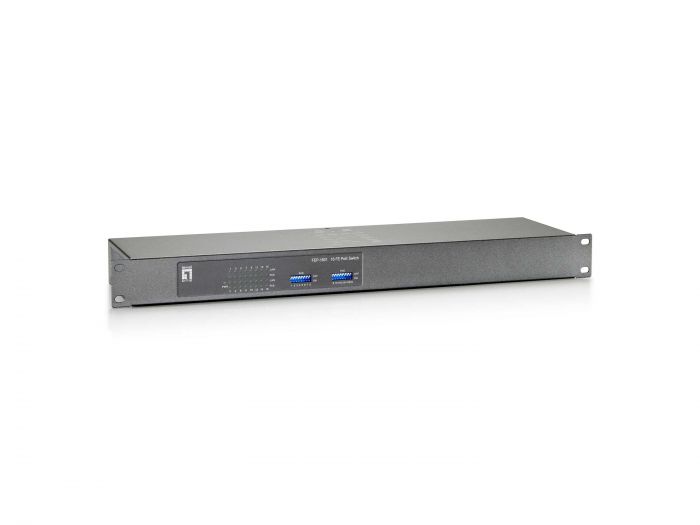

FEP-1601W120 FEP-1601W120, 16-Port Fast Ethernet PoE Switch, 120W
Model Number.
FEP-1601W120
SKU
52084903
FEP-1601W120 is a 16-port 10/100Mbps Fast Ethernet Switch with Power over Ethernet (PoE) capability. With 16 dip switches, each PoE port can be manually set for On-Off control. FEP-1601W120 supports up to 30W on each LAN port when the DIP switch is in the ON position . Using a LevelOne PoE repeater, it is possible to extend the connection a further 100 meters, or even daisy-chain several PoE repeaters together for greater distances. Dual 10/100Mbps ports can connect with other edge switches or NVR as uplink ports
| Port Configuration | |
|---|---|
| 802.3af/at PoE | 16 |
| Logistics Data. | |
| Harmonized System (HS) code. | 851762 |
| Customs product code (TARIC). | 8517620000 |
| General. | |
| Color. | Grey |
| EAN. | 4015867199848 |
| Model Number. | FEP-1601W120 |
| Miscellaneous. | |
| Grade. | Commercial |
| PoE Supported. | Yes |
| Manageable. | No |
| Fanless. | Yes |
| Concurrent ports. | Total 16.00 |
| PoE Power Budget. | Total 120.00 |
| Performance 2. | |
| Switching capacity. | 3.2Gbps |
| Physical Specifications. | |
| Product weight (kg). | 2,2 |
| Dimensions (W x D x H). | 480 x 118 x 44 mm |
| Others. | |
| Approval and Compliance. | FCC, CE, RoHS |
| Operating humidity. | 10% RH ~ 90% RH |
| Operating temperature. | 0°C ~ 45°C |
| Storage humidity. | 10% RH ~ 90% RH |
| Storage temperature. | -40°C ~ 70°C |
| Package Contents. |
FEP-1601W120, Power Cord, User Manual |
| System Specifications. | |
| Data Rate. | 100Mbps |
| Power supply included. | Yes |
| Standard. |
IEEE 802.3 10-BASE-T, Ethernet IEEE 802.3u 100-BASE-TX, Fast Ethernet IEEE 802.3x Full-duplex Flow ControlIEEE 802.3 10-BASE-T, Ethernet IEEE 802.3u 100-BASE-TX, Fast Ethernet IEEE 802.3x Full-duplex Flow ControlIEEE 802.3 10-BASE-T, Ethernet IEEE 802.3u 100-BASE-TX, Fast Ethernet IEEE 802.3x Full-duplex Flow ControlIEEE 802.3 10-BASE-T, Ethernet IEEE 802.3u 100-BASE-TX, Fast Ethernet IEEE 802.3x Full-duplex Flow ControlIEEE 802.3 10-BASE-T, Ethernet IEEE 802.3u 100-BASE-TX, Fast Ethernet IEEE 802.3x Full-duplex Flow ControlIEEE 802.3 10-BASE-T, Ethernet IEEE 802.3u 100-BASE-TX, Fast Ethernet IEEE 802.3x Full-duplex Flow ControlIEEE 802.3 10-BASE-T, Ethernet IEEE 802.3u 100-BASE-TX, Fast Ethernet IEEE 802.3x Full-duplex Flow ControlIEEE 802.3 10-BASE-T, Ethernet IEEE 802.3u 100-BASE-TX, Fast Ethernet IEEE 802.3x Full-duplex Flow ControlIEEE 802.3 10-BASE-T, Ethernet IEEE 802.3u 100-BASE-TX, Fast Ethernet IEEE 802.3x Full-duplex Flow Control |
| Mount. | 19" rack mount |
| Flash memory size. | 160 |
| MAC address table. | 4K |
| Indicators. | Power, Active, 10/100M, PoE |
| Backplane (Gbps). | 3.2 |
