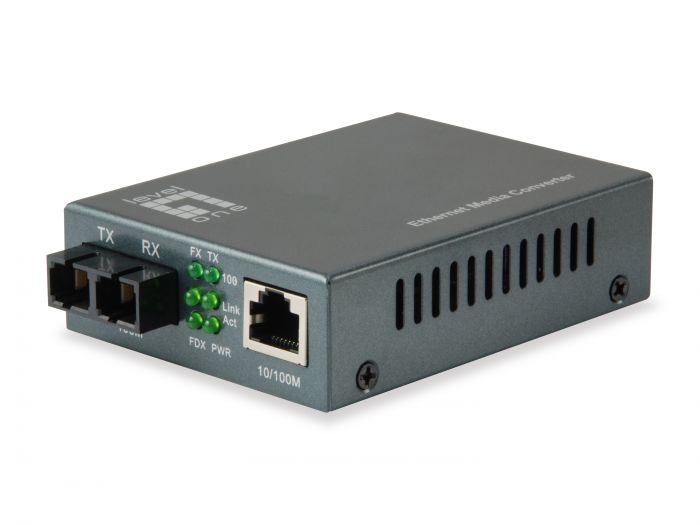

FVT-1106 RJ45 to SC Fast Ethernet Media Converter, Single-Mode Fiber, 1550nm, 120km
Model Number.
FVT-1106
SKU
54072603
Supports the transmission of extra-long packets up to 1.6KB
IEEE 802.3x Flow Control protects against lost packets for reliable data transmission
Single-mode fiber with SC connector for transmission of up to 120km
Supports low-time lag transmission
The LevelOne FVT-1106 SMF SC media converter can convert network signals between copper and fiber-optic based networks. The converter provides a 10/100Base-TX RJ-45 port, supports full duplex and half duplex switch connectivity and 10Base-T and 100Base-TX auto-sensing. Used in single-mode with fiber-optic cabling, this can extend a network range up to 120km.
The converter can be used as a standalone unit or as a slide-in module to the CHV-2000 19” Converter Chassis, which can accommodate up to 14 units for use in a central wiring closet.
| Logistics Data. | |
|---|---|
| Harmonized System (HS) code. | 851762 |
| Customs product code (TARIC). | 8517620000 |
| Miscellaneous. | |
| Fiber Optical Mode. | Single-Mode |
| Media Interface. | RJ45 to SMF SC |
| PoE Supported. | No |
| Manageable. | No |
| Grade. | Commercial |
| System Specifications. | |
| Data Rate. | 100Mbps |
| Power supply included. | Yes |
| Wavelength (nm). | 1550 |
| Others. | |
| Operating humidity. | 5% RH ~ 90% RH |
| Operating temperature. | 0°C ~ 50°C |
| Storage temperature. | -20°C ~ 70°C |
| Package Contents. |
FVT-1106 Netzadapter Quick Installation Guide |
| General. | |
| Color. | Black |
| EAN. | 4015867208083 |
| Model Number. | FVT-1106 |
| Physical Specifications. | |
| Dimensions (W x D x H). | 94 x 71 x 26 mm |
| Product weight (kg). | 0,2 |
