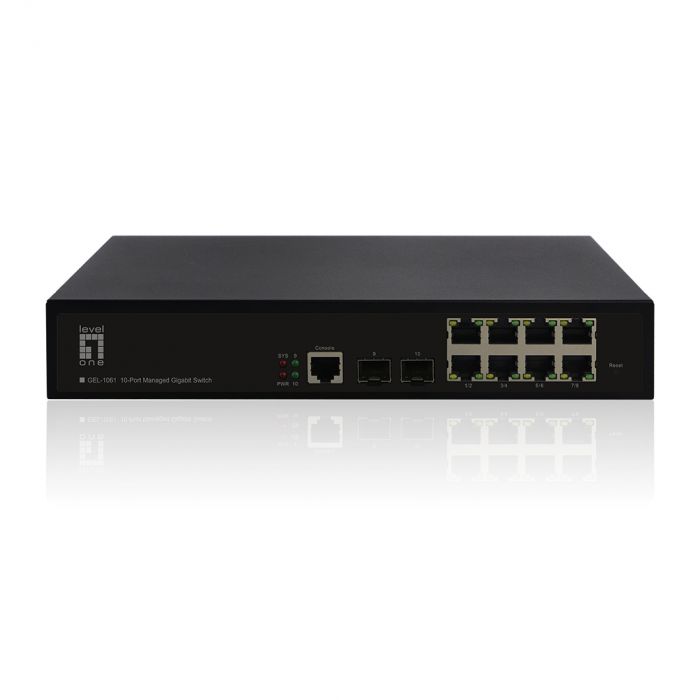

GEL-1061 10-Port L2 Managed Gigabit Switch, 8 x Gigabit RJ45, 2 x Gigabit SFP
Model Number.
GEL-1061
SKU
55120103201
The LevelOne GEL-1061 is an intelligent 10-Port L2 managed gigabit switch with 8 RJ45 ports and 2 SFP fiber slots, designed for enterprise or large workgroups connectivity applications with the non-blocking, wire-speed switching performance and advanced networking management functions.
The switch supports a flexible web-based management interface for both IPv4 and IPv6 as well as console, SNMP and Telnet management access. Despite its affordable pricing, the GEL-1061 is equipped with many advanced features such as Internet Group Management Protocol (IGMP) snooping, port-/MAC-/tag-based VLAN, IEEE 802.1d/w/s Spanning Tree, Access Control List (ACL), Link Aggregation Control Protocol (LACP), IEEE 802.1p QoS, Storm Control for protecting against broadcast/multicast/unknown unicast and much more.
An ideal network solution for anyone looking for an affordable and efficient way to expand their network.
| Logistics Data. | |
|---|---|
| Harmonized System (HS) code. | 851762 |
| Customs product code (TARIC). | 8517620000 |
| General. | |
| Color. | Black |
| EAN. | 4015867228623 |
| Model Number. | GEL-1061 |
| Features 1. | |
| Features. |
Quality of Service (QoS): ● 8 hardware Priority Queues per port ● Traffic classification based on IEEE 802.1p CoS ● IPv4/IPv6 precedence/ type of service (ToS) / DSCP based Rate Limiting - Ingress policer egress shaping and rate control Spanning Tree: ● Bridge Protocol Data Units (BPDU) IEEE 802.1D MAC Bridges ● IEEE 802.1d Spanning Tree Protocol (STP) ● IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) ● IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) ● Virtual Local Area Network (VLAN): 802.1Q tag-based VLAN - up to 4K VLANs and 4K VLAN IDs Port-based VLAN ● Port Isolation ● Port Mirror /Remote Mirror ● Broadcast / Multicast / Unknown Storm Control 802.1X ● ACL ● Port Security ● MAC Filter ● IP Source Guard SSH ● System Password protection NTP/SNTP ● Firmware upgrade /download (HTTP/TFTP/FTP) RMON/ SNMP ● Management Access (Console / SNMP/ Web / Telnet) Memory Flash Log ● Event /Error Log DHCP v4/v6 Snooping ● DHCP Snooping Option82 ● IGMP v1/v2/v3 |
| Miscellaneous. | |
| Grade. | Commercial |
| PoE Supported. | No |
| Manageable. | Yes |
| Fanless. | No |
| Concurrent ports. | Total 10.00 |
| Performance 2. | |
| Switching capacity. | 20 Gbps |
| Physical Specifications. | |
| Product weight (kg). | 0.8 |
| Dimensions (W x D x H). | 270 x 181 x 44 mm |
| Others. | |
| Approval and Compliance. |
● CE ● RoHS |
| Operating humidity. | 0% RH ~ 95% RH |
| Operating temperature. | -10°C ~ 50°C |
| Storage temperature. | -40°C ~ 85°C |
| Package Contents. |
● GEL-1061 ● Power Cord ● Console Cable ● 19" Rack Mount Kit ● Quick Installation Guide ● Declaration of Conformity |
| System Specifications. | |
| Power supply. | 100-240 VAC, 50-60 Hz |
| Data Rate. | 1Gbps |
| Power supply included. | Yes |
| Power consumption. | ＜15 W |
| Standard. |
● IEEE 802.3 10-BASE-T ● IEEE 802.3u 100-BASE-TX, Fast Ethernet ● IEEE 802.3ab 1000BASE-T, Gigabit Ethernet ● IEEE 802.3z 1000BASE-X, Gigabit Ethernet ● IEEE 802.1p Quality of Service (QoS) ● IEEE 802.1Q Virtual LANs (VLANs) ● IEEE 802.1d Spanning Tree Protocol (STP) ● IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) ● IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) ● IEEE 802.3x Flow Control ● IEEE 802.3ad Link Aggregation Control Protocol (LACP) , LACP Trunk (8 Trunks) |
| Mount. | 19" rack mount, Desk mount |
| Flash memory size. | 16 MB |
| RAM size. | 128 MB |
| MAC address table. | 8 K |
| Jumbo frame (KB). | 9 |
| Packet buffer. | 1 Mbit |
| Backplane (Gbps). | 20 |
