GEP-2861 28-Port L2 Managed Gigabit PoE Switch, 4 x Gigabit SFP, 24 PoE Outputs, 390W PoE Power Budget
Model Number.
GEP-2861
SKU
52090403101

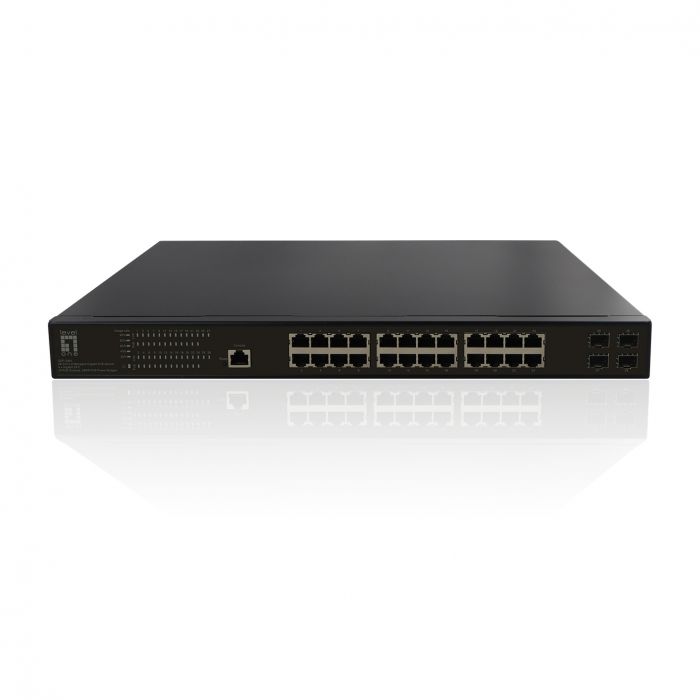

The levelone GEP-2861 is a 28-Port L2 Managed Gigabit PoE Switch that supports up to 24*10/100/1000M PoE ports and 4*100/1000M SFP ports. 24*10/100/1000M ports support PoE+ and total up to 390W PoE power budget, conforming to IEEE 802.3af/at standard, single port PoE power up to 30W. supports L2 management, such as QoS, VLAN, MSTP, Multi-brocast, ports management and PoE management. It has a high anti-interference ability, the product supports 6KV surge protection, and 6KV contact / 8KV air ESD protection. supports 19" rack mount and desktop installation, reliable and durable, and can be used in security network video monitoring, network engineering and other occasions. GEP-2861 provides high HW performance and environment flexibility for SMBs and Enterprises. GEP-2861 is ideal to deliver management simplicity, optimum user experience, and lower total cost of ownership.
| Logistics Data. | |
|---|---|
| Harmonized System (HS) code. | 851762 |
| Customs product code (TARIC). | 8517620000 |
| General. | |
| Color. | Black |
| EAN. | 4015867227848 |
| Model Number. | GEP-2861 |
| Features 1. | |
| Features. |
Quality of Service (QoS): ● 8 hardware Priority Queues per port ● Traffic classification based on IEEE 802.1p CoS ● IPv4/IPv6 precedence/ type of service (ToS) / DSCP based Rate Limiting - Ingress policer egress shaping and rate control Spanning Tree: ● Bridge Protocol Data Units (BPDU) IEEE 802.1D MAC Bridges ● IEEE 802.1d Spanning Tree Protocol (STP) ● IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) ● IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) ● Virtual Local Area Network (VLAN): 802.1Q tag-based VLAN - up to 4K VLANs and 4K VLAN IDs Port-based VLAN ● Port Isolation ● Port Mirror /Remote Mirror ● Broadcast / Multicast / Unknown Storm Control 802.1X ● ACL ● Port Security ● MAC Filter ● Event /Error Log DHCP v4/v6 Snooping ● DHCP Snooping Option82 |
| Management. |
● SSH ● WEB (HTTP) ● SNMP v1/v2c/v3 ● RMON ● LLDP ● System Log(Syslog) Information ● Firmware upgrade /download (HTTP/TFTP/FTP) RMON/ SNMP ● Management Access (Console / SNMP/ Web / Telnet) Memory Flash Log ● System Password protection NTP/SNTP |
| Security. |
● Port Security ● MAC address filter ● ARP Association (Manual, ARP scanning, DHCP snooping) up to 200 entries ● ARP Protection ● DoS (Denial of Service) ● Classification of packages based on: End.MAC, IP End, TCP / UDP Ports, Protocol Type ● 802.1x Autentication (port-based e MAC-based) |
| Miscellaneous. | |
| Grade. | Commercial |
| PoE Supported. | Yes |
| Manageable. | Yes |
| Fanless. | No |
| Concurrent ports. | Total 28.00 |
| PoE Power Budget. | Total 390.00 |
| Performance 2. | |
| Switching capacity. | 56 Gbps |
| Physical Specifications. | |
| Product weight (kg). | 4 |
| Dimensions (W x D x H). | 442 x 285 x 44 mm |
| System Specifications. | |
| Power supply. | AC power |
| Data Rate. | 1Gbps |
| Standards. | IEEE 802.3 10-BASE-T, Ethernet, IEEE 802.3u 100-BASE-TX, Fast Ethernet, IEEE 802.3ab 1000BASE-T, Gigabit Ethernet, IEEE 802.3af Power over Ethernet (PoE), IEEE 802.3at Power over Ethernet Plus (PoE+), IEEE 802.3az Energy-Efficient Ethernet, IEEE 802.1Q Virtual LANs (VLANs), IEEE 802.1D Spanning Tree Protocol (STP), IEEE 802.1w Rapid Spanning Tree Protocol (RSTP), IEEE 802.1s Multiple Rapid Spanning Tree Protocol (MSTP), IEEE 802.1X authentication, IEEE 802.1ab Link Layer Discover Protocol (LLDP), IEEE 802.3ad Link Aggregation Control Protocol (LACP), IEEE802.3z 1000Base-SX/LX |
| Power supply included. | Yes |
| Power consumption. | Self-consumption<20W, PoE output 390W max. |
| Port Configuration. | 4x 100/1000 SFP Ports, 24x 10/100/1000 Ethernet PoE+ ports, 250 meters PoE capability with 10 Mbps configuration per port |
| Standard. |
● IEEE 802.3 10-BASE-T ● IEEE 802.3u 100-BASE-TX, Fast Ethernet ● IEEE 802.3ab 1000BASE-T, Gigabit Ethernet ● IEEE 802.3z 1000BASE-X, Gigabit Ethernet ● IEEE 802.1p Quality of Service (QoS) ● IEEE 802.1Q Virtual LANs (VLANs) ● IEEE 802.1d Spanning Tree Protocol (STP) ● IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) ● IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) ● IEEE 802.3x Flow Control ● IEEE 802.3ad Link Aggregation Control Protocol (LACP) , LACP Trunk (8 Trunks) ● IEEE 802.3af (PoE) ● IEEE 802.3at (PoE+) |
| Pin assignment and polarity. | 1/2 (+), 3/6 (-) |
| Mount. | 19" rack mount, Desk mount |
| MAC address table. | 16 K |
| Jumbo frame (KB). | 10 |
| Indicators. |
● System ● Link/Active/Speed ● PoE |
| Packet buffer. | 4 Mbits |
| Backplane (Gbps). | 56 |
| Others. | |
| Approval and Compliance. |
● FCC Part 15, Subpart B, Class A(sDoC), ANSI C63.4 -2014 ● CE ● RoHS |
| Operating humidity. | 0% RH ~ 95% RH |
| Operating temperature. | -10°C ~ 50°C |
| Storage humidity. | 0% RH ~ 95% RH |
| Storage temperature. | -40°C ~ 85°C |
| Package Contents. |
● GEP-2861 ● Power Cord ● 19" Rack Mount Kit ● Quick Installation Guide ● Declaration of Conformity |
