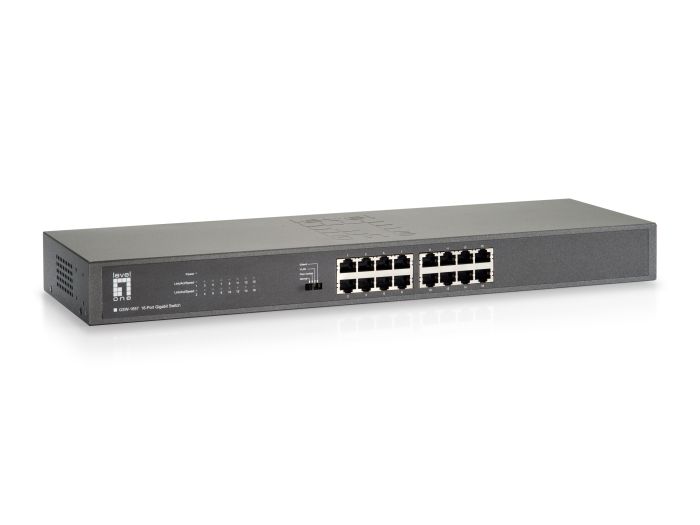

GSW-1657 16-Port Unmanaged Gigabit Switch
The LevelOne GSW-1657 is a 16-port Gigabit Ethernet unmanaged switch designed to deliver a fast, seamless upgrade from Fast Ethernet to full Gigabit performance. With 16 x 10/100/1000Mbps ports and a switching capacity of up to 32Gbps, it accelerates file sharing, backup, and multimedia traffic across workgroups, home offices, and small business networks.
Featuring wire-speed switching and 9K jumbo frame support, the GSW-1657 improves throughput for high-bandwidth applications such as HD video, CAD, CGI rendering, and large file transfers. An 8K MAC address table with auto-learning and auto-aging helps maintain stable performance as the network grows.
Installation is completely plug-and-play—no configuration required. Each port supports auto-negotiation for optimal speed and duplex mode, along with auto-MDI/MDIX to eliminate the need for crossover cables or dedicated uplink ports. Front-panel LEDs provide at-a-glance status for power, link, and activity, simplifying basic monitoring and troubleshooting.
Compliant with IEEE 802.3az Energy Efficient Ethernet, the GSW-1657 reduces power consumption during periods of low network activity, helping to lower operating costs and minimize environmental impact. Compact and easy to deploy on a desktop or in a small wiring area, it is an ideal choice for offices looking to upgrade to reliable Gigabit connectivity with minimal effort.
| Port Configuration | |
|---|---|
| Gigabit RJ45 | 16 |
| Logistics Data. | |
| Harmonized System (HS) code. | 851762 |
| Customs product code (TARIC). | 8517620000 |
| Features 1. | |
| Features. | 16 x 10/100/1000Mbps |
| Energy Saving. | IEEE 802.3az (Energy Efficient Ethernet) |
| Miscellaneous. | |
| Grade. | Commercial |
| PoE Supported. | No |
| Manageable. | No |
| Fanless. | Yes |
| Concurrent ports. | Total 16.00 |
| Performance 2. | |
| Switching capacity. | 32Gbps |
| System Specifications. | |
| Data Rate. | 1Gbps |
| Power supply included. | Yes |
| Power input. | 100-240VAC 50/60Hz |
| Power consumption. | 10.3W |
| Packet forwarding rate. | 1488000pps |
| Standard. |
IEEE 802.3i IEEE 802.3u IEEE 802.3ab IEEE 802.3x IEEE 802.3azIEEE 802.3i IEEE 802.3u IEEE 802.3ab IEEE 802.3x IEEE 802.3az |
| Mount. | 19" rack mount |
| Flash memory size. | 4.1Mbit |
| MAC address table. | 8K |
| Jumbo frame (KB). | 9 |
| Indicators. |
Power LINK/ACT/SpeedPower LINK/ACT/Speed |
| Backplane (Gbps). | 32 |
| Others. | |
| Operating humidity. | 10% RH ~ 90% RH |
| Operating temperature. | 0°C ~ 40°C |
| Storage humidity. | 5% RH ~ 90% RH |
| Storage temperature. | -40°C ~ 70°C |
| Package Contents. |
GSW-1657, Power Cord, 19" Rack Mount Kit, Quick Installation Guide |
| General. | |
| Color. | Grey |
| EAN. | 4015867143117 |
| Model Number. | GSW-1657 |
| Physical Specifications. | |
| Product weight (kg). | 2,6 |
| Dimensions (W x D x H). | 440 x 208 x 44 mm |
Download PDF
