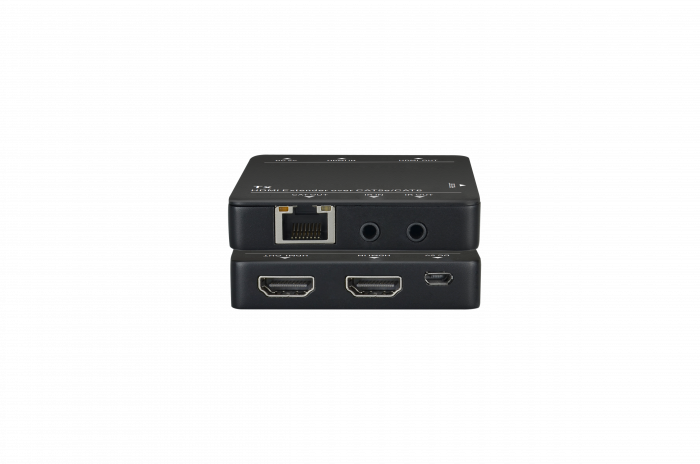

HVE-9006, HDMI over Cat.5/6 Extender kit 1080P, 50 Meter
Model Number.
HVE-9006
SKU
59090603101
The LevelOne HDMI Extender offers a ground-breaking solution for long range HDMI deployments, extending the range of HD signal broadcasts up to 50 metres from the source. Featuring both a transmitter and a receiver, signals are distributed over Ethernet cables, providing a crystal-clear, high-definition signal without the expense of using optical fiber.LevelOne HDMI Extender also supports both HDCP 1.4 and 2.2 which is sufficient to cover majority of HDMI devices. (Source and devices are needs to be same HDCP version)
| Logistics Data. | |
|---|---|
| Harmonized System (HS) code. | 851762 |
| Customs product code (TARIC). | 8517620000 |
| General. | |
| Color. | Black |
| EAN. | 4015867225738 |
| Model Number. | HVE-9006 |
| Physical Specifications. | |
| Dimensions (W x D x H). | 66 x 16.8 x 66 mm |
| Product weight (kg). | 0.074 |
| Others. | |
| Approval and Compliance. | CE/FCC |
| Operating temperature. | -10°C ~ 55°C |
| Package Contents. |
HVE-9006 Quick Installation Guide Power adapter IR Receiver/Emitter |
| System Specifications. | |
| Power consumption. | Max 3W |
| Power input. |
Power adapter: DC 5V /1A |
| Power supply included. | Yes |
| Resolution. | 1920 x 1080 @60 Hz |
