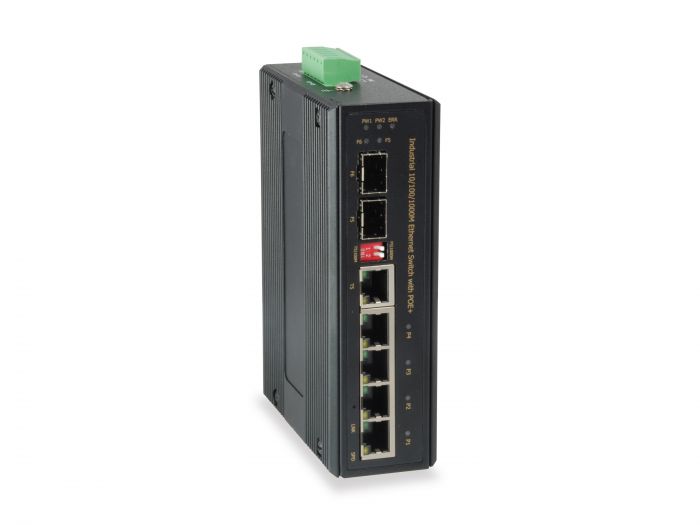

IES-0620 6-Port Gigabit PoE Industrial Switch, 802.3at/af PoE, 4 PoE Outputs, 1 x SFP, 1 x SFP/RJ45 Combo, DIN-Rail, -40°C to 75°C, 126W, voltage booster
Model Number.
IES-0620
SKU
55506407
LevelOne IES-0620 Industry Ethernet Switch provides 4 PoE ports 10/100/1000Base plus 2 port Gigabit SFP to enable high speed network at mission-critical environment. With the industrial standard DIN-rain mount; this switch can be easily installed in the cabinet, plus the clearly visible status LEDs provide simple monitoring of port link activity. Moreover, the SFP slots support pluggable modules that enabling you to choose from a variety of transceivers. This switch is Power Sourcing Equipment (PSE), and it is fully complied with IEEE 802.3at PoE standard at maximum 30W power budget per port. It helps to save infrastructure wiring costs dramatically by eliminating electric wiring and less UPS needed. Also, it is compatible with IEEE802.3af standard PD devices.
| General Information | |
|---|---|
| Knob | DIP1 On : Port 5 supports TX Copper DIP1 Off : Port 5 supports SFP (Default) DIP2 : Reserved |
| Port Configuration | |
| Gigabit SFP | x 2 |
| 802.3af/at PoE | x 6 |
| Logistics Data. | |
| Harmonized System (HS) code. | 851762 |
| Customs product code (TARIC). | 8517620000 |
| Power. | |
| Power Redundancy. | Dual Power Input |
| Miscellaneous. | |
| Grade. | Industrial |
| PoE Supported. | Yes |
| Manageable. | No |
| Fanless. | Yes |
| Concurrent ports. | Total 6.00 |
| PoE Power Budget. | Total 126.00 |
| System Specifications. | |
| Power supply. | Optional, 12-55V |
| Data Rate. | 1Gbps |
| Power supply included. | No |
| Power input. | 12-55(12/24/48)VDC Dual power input capable (Redundancy) |
| Power consumption. |
6 watts (with no PoE PD attached) 160 watts (with full PoE PD attached) |
| MTBF. | 5,510,304 hrs |
| Packet forwarding rate. |
1000Mbps port - 1,488,000pps 100Mbps port - 148,000pps 10Mbps port - 14,880pps |
| Standard. |
IEEE 802.3 10-BASE-T, Ethernet IEEE 802.3u 100-BASE-TX, Fast Ethernet IEEE 802.3ab 1000Base-T Gigabit Ethernet IEEE 802.3z 1000Base-X Gigabit Ethernet IEEE802.3x Flow Control and Back Pressure IEEE 802.3af Power over Ethernet (PoE) IEEE 802.3at Power over Ethernet Plus (PoE+) |
| Power Output. | Alarm Relay Output 1A @ 24VDC |
| Mount. | DIN rail mount |
| Flash memory size. | 1024 |
| MAC address table. | 1K |
| Jumbo frame (KB). | 10 |
| Indicators. |
PW1 (Power 1) : Green / PW2 (Power 2) : Green / ERR (Fault) : Amber LNK (RJ45) : Green SPD : Amber (1000) / Green (100) / Off (10) SFP : Green (Link / Active) |
| Dip switch. | DIP1 On : Port 5 supports TX Copper DIP1 Off : Port 5 supports SFP (Default) DIP2 : Reserved |
| Backplane (Gbps). | 12 |
| Others. | |
| Approval and Compliance. |
FCC Part 15 Subpart B Class A CE VCCI EN60950-1 EN61000-4-2 (ESD) Level 3 EN61000-4-3 (RS) Level 3 EN61000-4-4 (EFT) Level 3 EN61000-4-5 (Surge) Level 3 EN61000-4-6 (CS) Level 3 EN61000-4-8 (Magnetic Field) Level 3 UL508 (Pending) EN 50121-4 (Pending) IEC 60068-2-27 IEC 60068-2-32 IEC 60068-2-6 UL 508 |
| Operating humidity. | 5% RH ~ 95% RH |
| Operating temperature. | -40°C ~ 75°C |
| Storage humidity. | 5% RH ~ 95% RH |
| Storage temperature. | -40°C ~ 85°C |
| Package Contents. |
IES-0620 Quick Installation Guide |
| General. | |
| Color. | Black |
| EAN. | 4015867188514 |
| Model Number. | IES-0620 |
| Physical Specifications. | |
| Product weight (kg). | 0,72 |
| Dimensions (W x D x H). | 40 x 105 x 38 mm |
