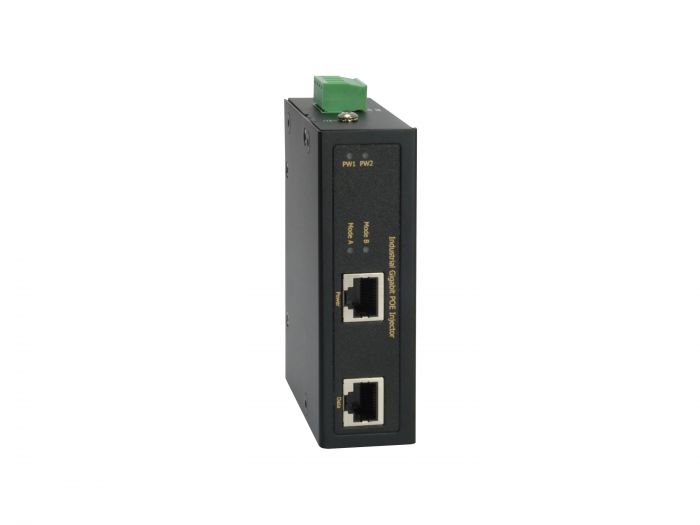

IGP-0101 Industrial Gigabit POE Injector, 802.3at
Model Number.
IGP-0101
SKU
55050907
The LevelOne IGP-0101 is rugged designed 30 Watts, high power Single port industrial POE Injector is equipped with our high efficiency ColdDesign technology to provide 30 Watts power to your security equipment. The ColdDesign technology will not only power up your PD device, also reduce the excessive heat problem to a minimum. It accepts the input voltage from 48~56 VDC to deliver 30Watts power to meet IEEE802.3af/at standard. It is being rigorously tested for your Security, Transportation and Telco application.
| Port Configuration | |
|---|---|
| Gigabit RJ45 | 2 |
| 802.3af/at PoE | 1 |
| Logistics Data. | |
| Harmonized System (HS) code. | 851762 |
| Customs product code (TARIC). | 8517620000 |
| Miscellaneous. | |
| Injector Port Type. | Single Port |
| Grade. | Industrial |
| Physical Specifications. | |
| Dimensions (W x D x H). | 81.5 x 32 x 103.5 mm |
| Product weight (kg). | 0,14 |
| System Specifications. | |
| Data Rate. | 1Gbps |
| Indicators. |
PW1(power 1) Green: ON- power good, OFF-power failed PW2(power 2) Green: ON- power good, OFF-power failed POE Yellow: ON- POE Normal working, FLASH- Overload, OFF- NO POE power detected |
| Mount. | DIN rail mount |
| Pin assignment and polarity. | 1/2 (+), 3/6 (-) |
| Power supply included. | No |
| Standard. |
IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Fast Ethernet IEEE 802.3ab 1000Base-T Gigabit Ethernet IEEE802.3af for POE IEEE802.3at for POE+ |
| Others. | |
| Approval and Compliance. | CE/FCC |
| Operating humidity. | 5% RH ~ 95% RH |
| Operating temperature. | -40°C ~ 85°C |
| Package Contents. |
IGP-0101 Hochstromklemme Bedienungsanleitung DIN-Schienen-Montageset Wandmontageset |
| General. | |
| Color. | Black |
| EAN. | 4015867196045 |
| Model Number. | IGP-0101 |
