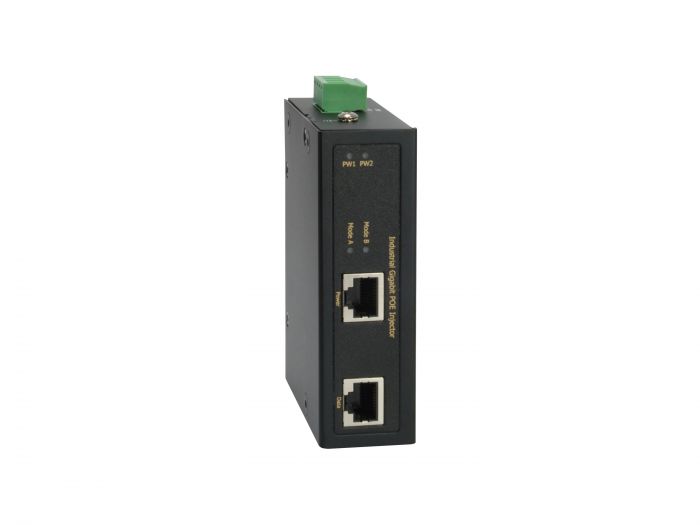

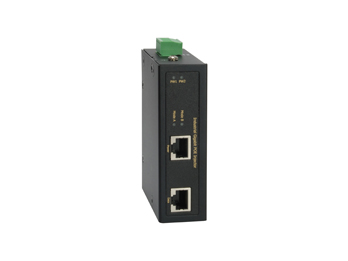

IGP-0102 ,Industrial Gigabit POE Injector, 802.3at PoE+, 36W, Power input 12-56V DC
Model Number.
IGP-0102
SKU
55051007
The LevelOne IGP-0102 is a Power over Ethernet (PoE) injector that not only delivers a cost-effective solution for power distribution, but also provides a seamless way of deploying Powered Devices (PDs) on existing LAN infrastructure.
Furthermore, non-PoE devices like wireless access points can also be powered up remotely by adding additional PoE splitters, since power and data are further split into two cables. These devices can therefore be installed in hard-to-reach areas like ceilings where there are no outlets or electrical wiring nearby.
| Logistics Data. | |
|---|---|
| Harmonized System (HS) code. | 851762 |
| Customs product code (TARIC). | 8517620000 |
| Miscellaneous. | |
| Grade. | Industrial |
| Physical Specifications. | |
| Dimensions (W x D x H). | 103.5 x 32 x 81.5 mm |
| Product weight (kg). | 0.15 |
| System Specifications. | |
| Data rate. | 10/100/1000 Mbps |
| Data Rate. | 1Gbps |
| Indicators. |
Power x 2 Mode x 2 |
| Mount. | DIN rail mount |
| Pin assignment and polarity. | 1/2 (+), 3/6 (-) |
| Port Configuration. | 2* 10/100/1000 Mbps, |
| Power consumption. | <5W |
| Power input. | DC 12-56V |
| Power supply included. | No |
| Standard. |
IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Fast Ethernet IEEE 802.3ab 1000Base-T Gigabit Ethernet IEEE802.3af for POE IEEE802.3at for POE+ |
| Others. | |
| Operating humidity. | 5% RH ~ 95% RH |
| Operating temperature. | -40°C ~ 75°C |
| Package Contents. |
Din Rail Bracket Terminal Block Wall mount bracket |
| General. | |
| Color. | Black |
| EAN. | 4015867196595 |
| Model Number. | IGP-0102 |
