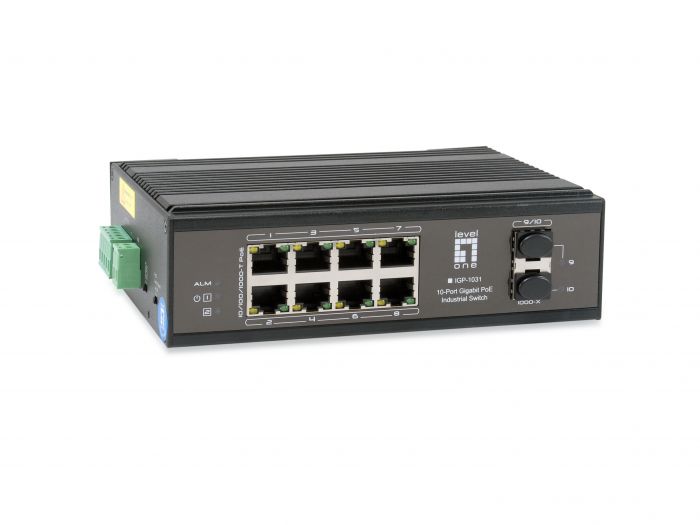

IGP-1031, 10-Port Gigabit PoE Industrial Switch, DIN-Rail, -40°C to 75°C, 240W
LevelOne IGP-1031 Industry Ethernet Switch provides 8 PoE ports 10/100/1000Base plus 2 port Gigabit SFP to enable high speed network at mission-critical environment. With the industrial standard DIN-rail mount; this switch can be easily installed in the cabinet, plus the clearly visible status LEDs provide simple monitoring of port link activity. Moreover, the SFP slots support pluggable modules that enabling you to choose from a variety of transceivers. This switch is Power Sourcing Equipment (PSE), and it is fully complied with IEEE802.3af/at PoE standard at maximum 30W each port power budget. It helps to save infrastructure wiring costs dramatically by eliminating electric wiring and less UPS needed. Also, it is compatible with IEEE802.3af standard PD devices.
| Port Configuration | |
|---|---|
| Gigabit RJ45/SFP combo | 2 |
| Gigabit RJ45 | 8 |
| 802.3af/at PoE | 8 |
| Logistics Data. | |
| Harmonized System (HS) code. | 851762 |
| Customs product code (TARIC). | 8517620000 |
| Power. | |
| Power Redundancy. | Dual Power Input |
| Features 1. | |
| Features. |
PoE Auto-check : If detect the frozen PD device, switch will restart it. IEEE 802.3af/at MTBF: 400k hours |
| Miscellaneous. | |
| Grade. | Industrial |
| PoE Supported. | Yes |
| Manageable. | No |
| Fanless. | Yes |
| Concurrent ports. | Total 10.00 |
| PoE Power Budget. | Total 240.00 |
| System Specifications. | |
| Power supply. | VDC 48~57V |
| Data Rate. | 1Gbps |
| Power supply included. | No |
| Power input. | Redundant Dual DC 48V-57V |
| Power consumption. | <15W without PoE |
| Port Configuration. | 8*10/100/1000 RJ-45(PoE), 2*1000 Mbps SFP |
| Standard. |
IEEE 802.3 10-BASE-T, Ethernet IEEE 802.3u 100-BASE-TX, Fast Ethernet IEEE 802.3ab 1000Base-T Gigabit Ethernet IEEE 802.3z 1000Base-X Gigabit Ethernet IEEE802.3x Flow Control and Back Pressure IEEE802.3af for POE IEEE802.3at for POE+ |
| Pin assignment and polarity. | 1/2 (+), 3/6 (-) |
| Mount. | DIN rail mount |
| MAC address table. | 8K |
| Indicators. |
Power :Red Act/Link :Green 10/100/1000 Green PoE :Yellow |
| Packet buffer. | 1M |
| Backplane (Gbps). | 20 |
| Others. | |
| Approval and Compliance. |
CE/FCC Surge: 6KV, standard: IEC61000-4-5 ESD: 8KV: contact/15KV: air, standard:IEC61000-4-2 |
| Operating humidity. | 0% RH ~ 95% RH |
| Operating temperature. | -40°C ~ 75°C |
| Storage humidity. | 0% RH ~ 95% RH |
| Storage temperature. | -40°C ~ 85°C |
| Package Contents. |
IGP-1031 Power Terminal Block Quick Installation Guide |
| General. | |
| Color. | Black |
| EAN. | 4015867223963 |
| Model Number. | IGP-1031 |
| Physical Specifications. | |
| Product weight (kg). | 1 |
| Dimensions (W x D x H). | 165 x 114 x 50 mm |
