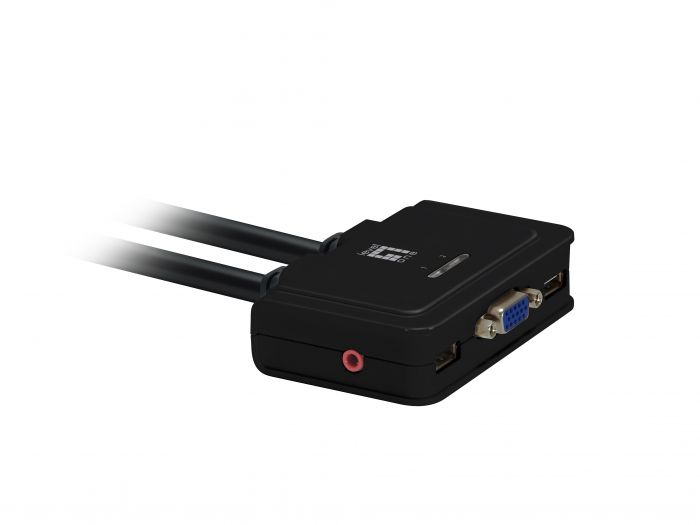

KVM-0223 2-Port USB VGA Cable KVM Switch, audio support
Model Number.
KVM-0223
SKU
590223
The LevelOne KVM-0223 USB Cable KVM Switch offers users a high resolution VGA video interface and eliminates connection headaches with two sets of fixed USB KVM & Audio / Mic combo cables. A wired QuickSwitch! button further enhances the user's experience by switching from one computer to another with just the touch of a button.The LevelOne KVM-0223 also supports switching client software with both Windows and Mac OS supported. LevelOne freeware can be installed on networked computers for intuitive menu-driven switching action. A desktop icon displays which port is currently active, giving users an easy interface with the devices, an LED display provides easy status monitoring and keyboard hotkeys offer even more convenience with a third way of switching between devices.The two USB 2.0 keyboard and mouse ports are transparent USB hub ports that feature full driver support for advanced keyboard/mouse action. In addition, they can also be connected to other high-speed devices such as USB disk storage.
Port Configuration | |
---|---|
VGA in | 1 |
Logistics Data. | |
Harmonized System (HS) code. | 851762 |
Customs product code (TARIC). | 8517620000 |
Features 1. | |
Features. | Keyboard: 105 key usb keyboard |
Miscellaneous. | |
Display Type. | VGA |
Installation. | Cable Type |
Physical Specifications. | |
Dimensions (W x D x H). | 58 x 87 x 24 mm |
Product weight (kg). | 0,375 |
System Specifications. | |
Indicators. | Green for PC Selection |
Power supply included. | No |
Resolution. |
Resolution:2048 x 1536 Cable Length 0.9 M |
Others. | |
Operating humidity. | 0% RH ~ 90% RH |
Operating temperature. | 0°C ~ 40°C |
Package Contents. |
KVM-0223 Quick Installation Guide Resource CD (User Manual, Utility, Driver) |
General. | |
Color. | Black |
EAN. | 4015867141908 |
Model Number. | KVM-0223 |
