OAN-4121, 12dBi 5GHz Omnidirectional Antenna
Model Number.
OAN-4121
SKU
54041507
- For IEEE 802.11a/n/ac Wireless applications in 5 GHz frequency range
- Provides 12dBi omnidirectional operation
- Low wind loading
- -30°C to 60°C operating temperature range

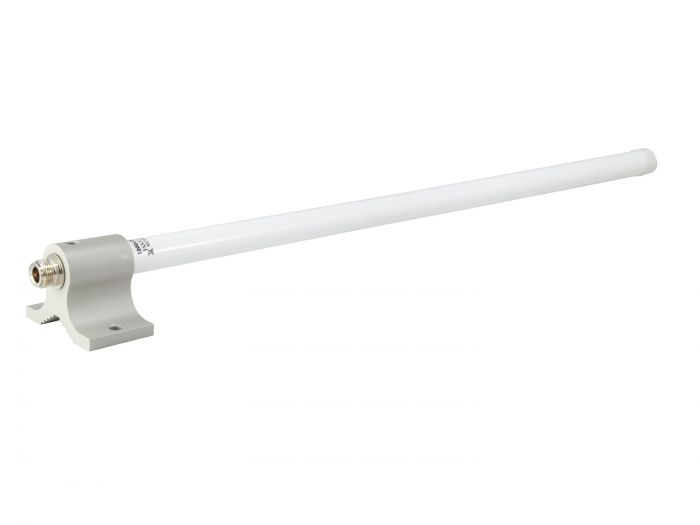

The LevelOne OAN-4121 is an omni-directional antenna operating on the 5 GHz frequency that can be mounted either indoors or outdoors. The antenna’s gain value is 12dBi, and if mounted outdoors the weatherproof housing can withstand temperatures from minus 30°C up to 60°C, as well as rain, sNAw, dust and other harsh conditions.
| Port Configuration | |
|---|---|
| 5G N female jack | 1 |
| Logistics Data. | |
| Harmonized System (HS) code. | 851779 |
| Customs product code (TARIC). | 8517790000 |
| Miscellaneous. | |
| Antenna type. | Omni-directional |
| Frequency band. | 5GHz |
| Performance 2. | |
| Return loss. | -10 |
| Reliability. | |
| Survival wind speed. | 50 m/s |
| System Specifications. | |
| Frequency band. | 5.45~5.835 GHz |
| HPBW horizontal. | 360° |
| HPBW vertical. | 17.5° |
| Impedance (ohm). | 50 |
| Polarization. | Vertical |
| VSWR. | 2.0 |
| Others. | |
| Operating temperature. | -30°C ~ 60°C |
| Package Contents. |
OAN-4121 Pole Mount Kit Quick Installation Guide |
| General. | |
| Color. | White |
| EAN. | 4015867203200 |
| Model Number. | OAN-4121 |
| Physical Specifications. | |
| Dimensions (W x D x H). | 70 x 558.5 x 53 mm |
| Product weight (kg). | 0.3 |
