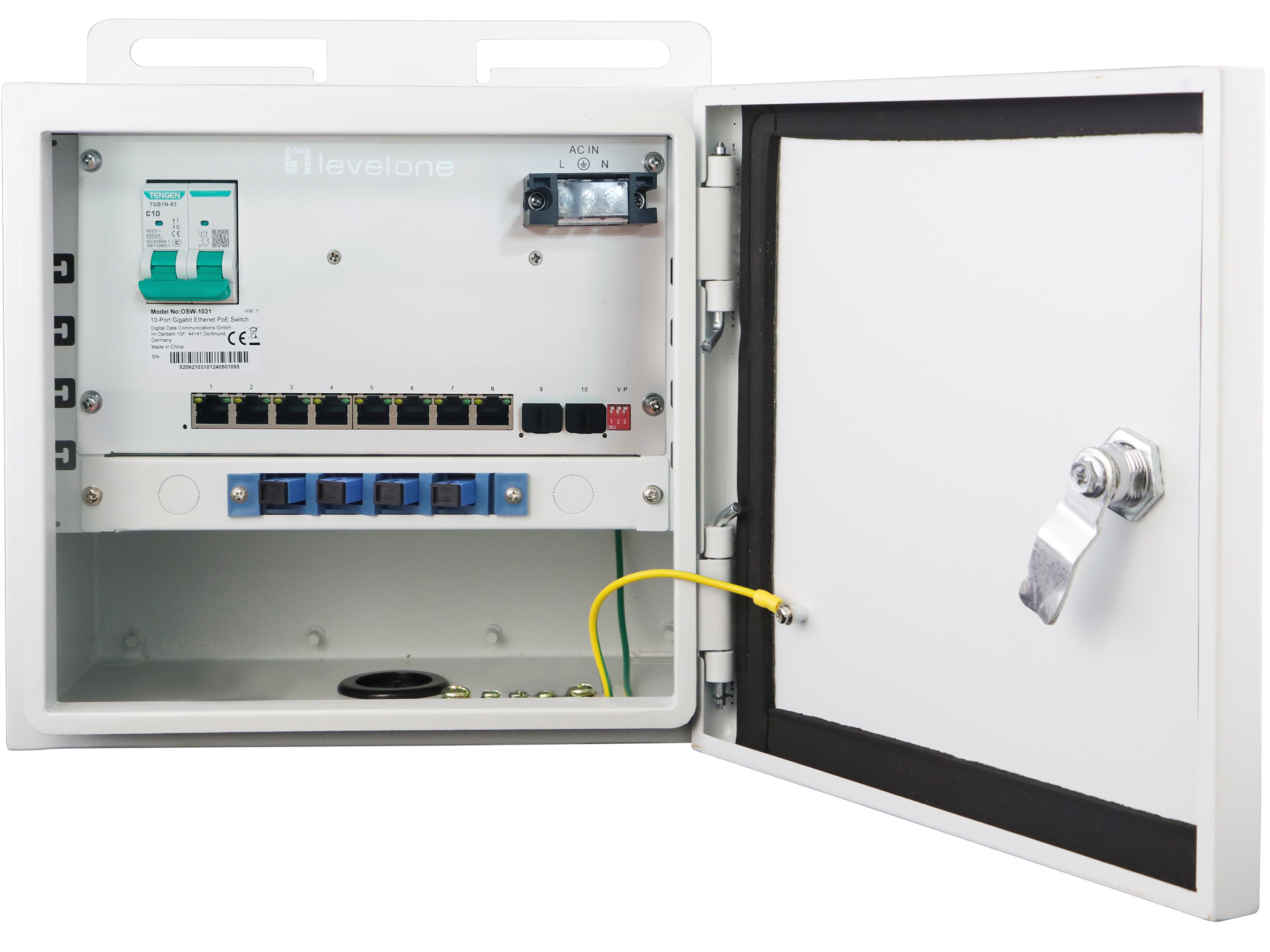

OSW-1031,10-Port Gigabit Ethernet PoE Switch, 8 PoE Outputs 10/100/1000Mbps +2 uplink Gigabit SFP port, 115W PoE Power Budget
Model Number.
OSW-1031
SKU
52092103101
The OSW-1031 is 8-Port Gigabit Ethernet Unmanaged PoE Switch, with 2 Gigabit RJ45 and 2 Gigabit SFP Uplink ports. also offers powerful DIP switch button configuration for PoE Auto-Check / VLAN mode features.
The OSW-1031 PoE-enabled switches features an IEEE 802.3af/at certified, better PoE functionality with 115W PoE power budget and usability. supports up to 8 ports at 15.4/30W. Giving you flexibility in power allocation for a variety of powered devices enabling you to scale your operations to meet business growth, operational cost savings, and ease of management.
The OSW-1031 switch is designed to withstand outdoor or harsh environments, and can be mounted on a wall, pole, or cabinet to fit your space and layout. Whether you need to connect your devices in a garden, pool, or patio area, this switch will provide you with reliable and efficient data transmission. Don't miss this opportunity to upgrade your network with this powerful and versatile switch.
| Logistics Data. | |
|---|---|
| Harmonized System (HS) code. | 851762 |
| Customs product code (TARIC). | 8517620000 |
| Features 1. | |
| Features. |
V mode: VLAN: 1~8 ports are isolated, only can communicate with the uplink ports; restrain the networkt storm; close flow control. P mode: PoE Auto-Check: PoE Auto-Check function is open/ closed by dip switch Protection Features: ● Surge Protection 6KV, Standard IEC61000-4-5 ● ESD Protection 6KV, contact / 8KV: air, Standard IEC61000-4-2 |
| Miscellaneous. | |
| Grade. | Industrial |
| PoE Supported. | Yes |
| Manageable. | No |
| Fanless. | No |
| Concurrent ports. | Total 10.00 |
| PoE Power Budget. | Total 115.00 |
| Physical Specifications. | |
| Product weight (kg). | 8 |
| Dimensions (W x D x H). | 280x200x250 |
| System Specifications. | |
| Power supply. | Industrial Power included |
| Data Rate. | 1Gbps |
| Power supply included. | Yes |
| Power input. | VAC100-240V, 50/60Hz |
| Power consumption. | 120 Watt |
| MTBF. | 4,000,000 hours |
| Port Configuration. | 10/100/1000 Mbps PoE x 8, SFP x2 , SC Fiber Tray x4 , AC IN, Dip |
| IP grade. | IP55 |
| Standard. |
• IEEE 802.3 10-BASE-T (Ethernet) • IEEE 802.3u 100-BASE-TX (Fast Ethernet) • IEEE 802.3ab 1000BASE-T (Gigabit Ethernet) • IEEE 802.3z 1000BASE-X (Gigabit Ethernet) • IEEE 802.3 af/at |
| Power Output. | PoE output max. 115W |
| Pin assignment and polarity. | 1/2 (+), 3/6 (-) |
| Mount. | Pole mount |
| MAC address table. | 4K |
| Jumbo frame (KB). | 9K |
| Indicators. | Power/ Link Act |
| Dip switch. | V:VLAN: 1~8 ports are isolated, only can communicate with the uplink ports; restrain the networkt storm; close flow control. P:PoE Auto-Check: PoE Auto-Check function is open/ closed by dip switch. |
| Packet buffer. | 12KB |
| Backplane (Gbps). | 20 |
| Others. | |
| Approval and Compliance. | CE/FCC |
| Operating humidity. | 0% RH ~ 90% RH |
| Operating temperature. | -20°C ~ 65°C |
| Storage humidity. | 0% RH ~ 90% RH |
| Storage temperature. | -40°C ~ 75°C |
| Package Contents. |
QIG ECDoC Pole Mount Ring 7" Waterproof Pad x 2 Box Key |
| General. | |
| Color. | White |
| EAN. | 4015867236437 |
| Model Number. | OSW-1031 |
Download PDF
