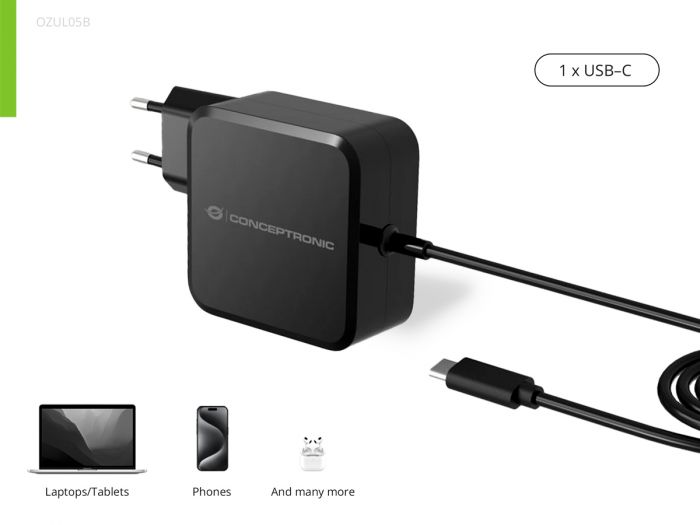

OZUL05BE 100W GaN USB PD Charger, Built-in USB-C Cable, PPS, PD 3.0
This charger leverages advanced Gallium Nitride (GaN) technology to deliver up to 100W of total power, ensuring rapid and efficient charging for a wide range of devices. It supports various output options from 5.0V to 20.0V across its ports, making it compatible with everything from smartphones to laptops. The charger is equipped with enhanced safety features, including protections against overload, short circuiting, and overheating, to safeguard both the charger and your devices. It incorporates USB Power Delivery (PD) 3.0 for fast charging and Programmable Power Supply (PPS) compliance to optimize efficiency and reduce heat. For added convenience, the charger includes a built-in 1.8m USB-C cable, providing both ease of use and versatility.
| Packaging Content. | |
|---|---|
| Cables included. | USB Type-C |
| Power Plug Type. | EU |
| Ports & Interfaces. | |
| USB Power Delivery revision | 3.0 |
| Performance 1. | |
| Number of outputs. | 1 |
| USB Type-A ports quantity. | 0 |
| Fast charging technology. | Power Delivery 3.0, Programmable Power Supply (PPS) |
| USB Type-C ports quantity. | 0 |
| Programmable power supply (PPS) (YES/NO). | Yes |
| Housing Material. | Polycarbonate (PC) |
| Number of simultaneously connected devices (max). | 1 |
| Port 1 Power Output. | output: DC 5.0V/3.0A, 9.0V/3.0A, 12.0V/3.0A, 15.0V/3.0A, 20.0V/5.0A (PD); 5.0~16.0V/3.0A, 5.0V~11.0V/5.0A (PPS) |
| Features 2. | |
| Cable length. | 180 centimeter |
| Logistics Data. | |
| Harmonized System (HS) code. | 850440 |
| Power. | |
| Maximum AC Input. | 240 volt |
| Minimum AC Input. | 100 volt |
| Input current. | 1.8 ampere |
| Maximum power. | 100 watt |
| Power Protection Features. | Over current, Over power, Short circuit |
| Sustainability. | |
| Sustainability Compliance. | No |
| Operational Conditions. | |
| Operating temperature (T-T) Max. | 40 celsius |
| Operating temperature (T-T) Min. | 0 celsius |
| Storage relative humidity (H-H) Max. | 90% |
| Storage relative humidity (H-H) Min. | 10% |
| Operating relative humidity (H-H) Max. | 80% |
| Operating relative humidity (H-H) Min. | 20% |
| Storage temperature (T-T) Max. | 80 celsius |
| Storage temperature (T-T) Min. | -20 celsius |
| Packaging Data. | |
| Package Depth. | 136 millimeter |
| Package Height. | 36 millimeter |
| Package Width. | 153 millimeter |
| Product Gross Weight. | 29 gram |
| General. | |
| Color. | Black |
| EAN. | 4015867235614 |
| Model Number. | OZUL05BE |
| Physical Specifications. | |
| Product Height. | 66 millimeter |
| Product Width. | 68 millimeter |
| Product Depth. | 32 millimeter |
| Product Net Weight. | 265 gram |
| Others. | |
| Approval and Compliance. | CE, ERP, RoHS |
| Package Content. | Quick installation guide |
