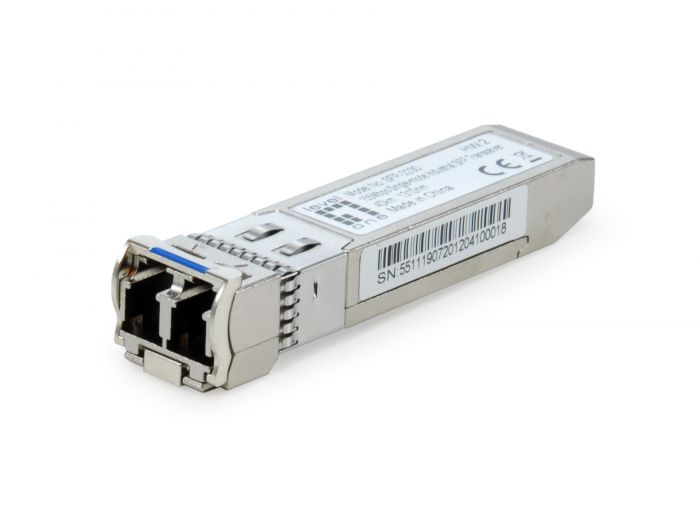

SFP-2230 155Mbps Single-mode Industrial SFP Transceiver, 40km, 1310nm, -40°C to 85°C
Model Number.
SFP-2230
SKU
55111907201
The levelOne SFP-2230 is a high performance and cost-effective single-mode Industrial SFP transceiver. Intended for use with 100BASE-FX, it provides up to 155 Mbps data transfer rate on a single duplex fiber core. For use with 9 and 125 micron fiber cables, it can reach a distance of up to 30km. The SFP-2230 transceiver operates using a wavelength of 1310nm with a FP Laser Diode light source and has an LC port.
This Hot-swappable SFP transceiver offers the latest Industrial standard in full-duplex Ethernet connectivity and withstand under wide range temperature operation.
| Port Configuration | |
|---|---|
| Fast Ethernet single-mode LC | 1 |
| Logistics Data. | |
| Harmonized System (HS) code. | 851762 |
| Customs product code (TARIC). | 8517620000 |
| General. | |
| Color. | Silver |
| EAN. | 4015867224427 |
| Model Number. | SFP-2230 |
| Features 1. | |
| Features. |
• DDM (Digital Diagnostics Monitoring) • Hot-swappable • Duplex LC connector |
| Miscellaneous. | |
| Fiber Optical Mode. | Single-Mode |
| Transceiver Type. | SFP |
| Grade. | Industrial |
| Performance 2. | |
| Receiver sensitivity. | -34 dBm |
| Physical Specifications. | |
| Dimensions (W x D x H). | 13.6 x 57 x 8.5 mm |
| Product weight (kg). | 0.021 |
| System Specifications. | |
| Data rate. | 155 Mbps |
| Optical transmission power (dBm). | -5 to 0 dBm |
| Power consumption. |
• 0.8 W (0°C to 70°C) • 1 W (-40°C to -85°C) |
| Power input. |
• Power Supply Voltage : 3.13 to 3.47 V • Power Supply Current : 300 mA • Inrush current : 30 mA |
| Standard. |
• 100BASE-FX • SFP MSA SFF-8074i Compliant • SONET OC-3 IR-1/STML-1.1 Compliant |
| Wavelength (nm). | 1310 nm (FP Laser Optical Components) |
| Others. | |
| Approval and Compliance. |
• CE • RoHS • ISO 14001:2015 • ISO 9001:2015 • EMI compatible with FCC Part 15 Class B, EN55022 Class B (CISPR 22B), VCCI Class B • Laser Eye Safety compatible with FDA 21CFR 1040.10 and 1040.11 EN60950, EN (IEC)60825-1,2 • ESD to the Electrical PINs: compatible with MIL-STD-883 Method 3015 • ESD to the Duplex LC Receptacle: compatible with IEC 61000-4-2 • Immunity compatible with IEC 61000-4-3 |
| Operating humidity. | 0% RH ~ 85% RH |
| Operating temperature. | 0°C ~ 70°C |
| Storage humidity. | 5% RH ~ 95% RH |
| Storage temperature. | -40°C ~ 85°C |
| Package Contents. |
• SFP-2230 • Quick Installation Guide |
