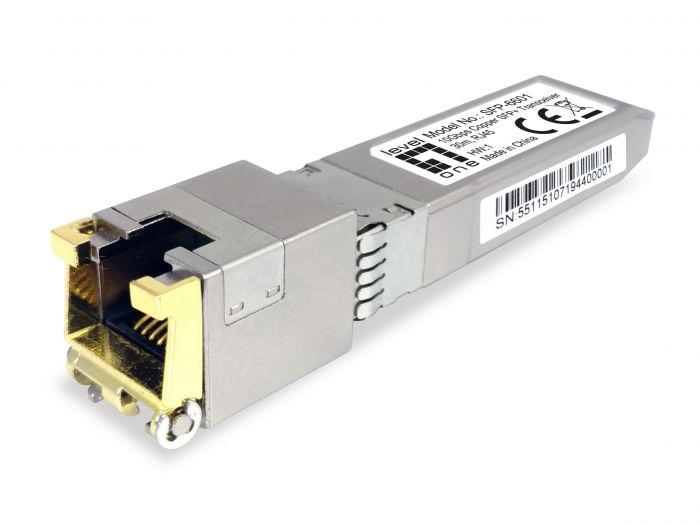

SFP-6601, 10Gbps Copper SFP+ Transceiver, 30m, RJ45
Model Number.
SFP-6601
SKU
55115107
The LevelOne SFP-6601 is the latest generation of 10Gbps copper SFP+ transceivers. It provides a powerful duplex data link for bidirectional communication over copper Ethernet cables. The SFP-6601 transmits data from 10GBase-T copper to SFP fiber optic interfaces at up to 10 Gbps and a maximum cable length of up to 30 meters over Category 6a, 7 and 8 twisted pair cables. Ideal for servers and storage systems requiring high bandwidths. The SFP-6601 offers system developers and planners a high degree of flexibility.
| Port Configuration | |
|---|---|
| 10-Gigabit RJ45 | 1 |
| Logistics Data. | |
| Harmonized System (HS) code. | 851762 |
| Customs product code (TARIC). | 8517620000 |
| General. | |
| Color. | Silver |
| EAN. | 4015867222560 |
| Model Number. | SFP-6601 |
| Features 1. | |
| Features. | Hot-swappable |
| Miscellaneous. | |
| Transceiver Type. | Copper SFP+ |
| Grade. | Commercial |
| Physical Specifications. | |
| Dimensions (W x D x H). | 13.7 x 57 x 12 mm |
| Product weight (kg). | 0.02 |
| Others. | |
| Approval and Compliance. | CE, RoHS |
| Operating humidity. | 0% RH ~ 95% RH |
| Operating temperature. | 0°C ~ 60°C |
| Storage humidity. | 0% RH ~ 95% RH |
| Storage temperature. | -40°C ~ 85°C |
| Package Contents. |
SFP-6601 Quick Installation Guide |
| System Specifications. | |
| Data rate. | 10GBASE-T(Connect the CAT6a cable) |
| Power consumption. | 1.05W |
| Power input. | 3.3V / 700mA |
| Standard. |
IEEE 802.3an 10GBASE-T, IEEE 802.3az, IEEE 802.3-2012, SFF-8431/SFF-8432 MSA |
