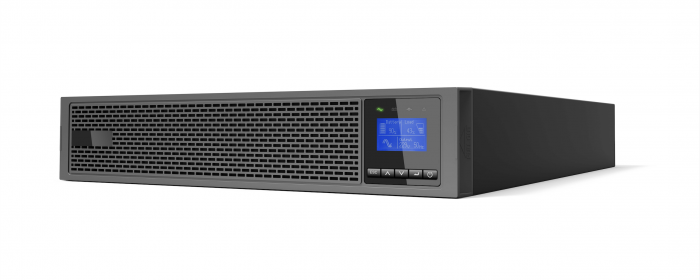

UPS-2103, Volta Online UPS 3KVA/3000W

Model Number.

UPS-2103

SKU

59930503101

True double-conversion design with high adaptability to harsh mains conditions.

Real PF 1 can provide more power in same space High efficiency results in energy saving.

Adjustable charging current and flexible battery configuration .

Optimized changing method to expand battery life time.

Built-in OVCD protection, fan lock detection, over temperature detection, overload warning to enhance the product reliabilit.

Dot matrix LCD support up to 10 languages for easy installation and service.(Included 8 languages, with 2 additional customizable options).

Embedded Ethernet port solution provide safe network connection to Cloud which will meet the increasing IoT trend. Mobile APP for monitoring, Support Android/iOS.

USB HID enable monitoring on UPS without software installation.

Dry contactor for industrial condition.

Free Management Software monitor Max to 1000 unit UPS

Details

The LevelOne Online UPS is the ultimate solution for dependable battery backup in both home and office settings. With an output power factor of 1.0, this UPS delivers maximum efficiency and performance. Designed for generator compatibility, it provides continuous power even during extended outages.Equipped with a HID-compatible USB connection for seamless device communication and an Emergency Power Off (EPO) port for added safety during emergencies, the UPS offers both convenience and security. The easybattery replacement feature simplifies maintenance, while the programmable outlet management allows you to tailor power distribution to meet your specific needs. Easy to install and operate, the LevelOne Online UPS provides a reliable and efficient way to protect your systems from power surges and failures, ensuring the uninterrupted operation of your critical equipment. The included rackmount ears support both rack mounting and tower installation, offering flexibility in setup.

Specifications

More Information
Logistics Data.
Harmonized System (HS) code.	850440
Customs product code (TARIC).	8504406090
General.
Color.	Black
EAN.	4015867235034
Model Number.	UPS-2103
Features 1.
Protection.	Emergency Power Off (EPO) Port
Performance 2.
Recharge time.	VAC 220/1.5A, 3h to 90%
Physical Specifications.
Dimensions (W x D x H).	60043885.5
Product weight (kg).	26.3
System Specifications.
Alarm.	Battery Mode, Low Battery, Overload, Fault
Battery capacity (mAh).	6 x 12V/9Ah
Battery capacity (Wh).	108
Battery type.	Lead-acid
Battery voltage.	72V
Switches/Buttons.	Power On/Off
Display.	Graphic LCD
Number of battery.	6
Port Configuration.	IEC C13 x 8, IEC C19 x1 RJ45 x 2, USB x 1, HDMI x 1 ,RS-232,Terminal black
Power input.	VAC 160-300V
Power Output.	VAC200-240,50Hz/60Hz
Power rating.	3000VA
UPS Type.	Online double conversion
Waveform.	Sine wave
Others.
Approval and Compliance.	CE/FCC/RoHS/IP20 IEC/EN 61000-4-2 IEC/EN 61000-4-3 IEC/EN 61000-4-4 IEC/EN 61000-4-5
Operating humidity.	0% RH ~ 90% RH
Operating temperature.	0°C ~ 40°C
Package Contents.	USB cable Power cord User Manual Tower feet Rack ears QIG EcDoc

Download Resources

Download PDF
