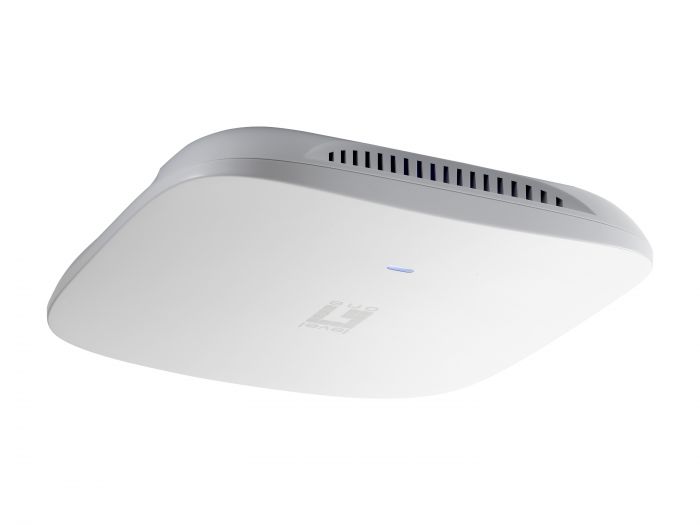

WAP-8121 AC750 Dual Band PoE Wireless Access Point, Ceiling Mount, Controller Managed

Model Number.
WAP-8121
SKU
54620507
  • Share your wireless network up to 750Mbps
  • Compatible with IEEE 802.11a/b/g/n/ac wireless standards
  • Provides up to 8 SSIDs to separate network traffic and enhance security
  • Multi-operation modes to suit different wireless applications
  • Auto Channel Selection for low interference band
  • Dual power support: 12V DC/PoE (IEEE 802.3at)
    • LevelOne’s WAP-8121 is a managed, dual-band wireless access point, capable of a combined speed of up to 750 Mbps. The device runs on 2.4 and 5 GHz frequencies, and can be used as part of a managed network when controlled by the LevelOne WAC-2000/WAC-2003 Wireless LAN Controller. LevelOne WAP-8121 also offers PoE, removing the need for an external power supply, which makes it easy to install. A fast, versatile and secure access point for a wide variety of network requirements.
    More Information
    Port Configuration
    Fast Ethernet RJ45 2
    802.3af/at PoE 1
    Logistics Data.
    Harmonized System (HS) code. 851762
    Customs product code (TARIC). 8517620000
    Features 1.
    Features. Multi-SSID: 8 SSIDs (2.4GHz x 4 SSIDs + 5.8GHz x 4 SSIDs)
    Miscellaneous.
    Frequency band. 2.4/5GHz(Dual bands)
    PoE Supported. Yes
    Wireless AP type. Ceiling
    Max. Wi-Fi Data Rate. 750Mbps
    Performance 2.
    Receiver sensitivity. 2.4 GHz
    ● 11n: -70dbm@MCS7, -88dbm@MCS0.
    ● 11g: -72dbm@54Mbps, -88dbm@6Mbps.
    ● 11b: -85dbm@11Mbps, -94dbm@1Mbps.

    5GHz
    ● 11a: -72dbm@54Mbps, -90dbm@6Mbps.
    ● 11n: -70dbm@MCS7, -90dbm@MCS0.
    ● 11ac: -60dbm@MCS9, -86dbm@MCS0.
    Physical Specifications.
    Dimensions (W x D x H). 189 x 38.5 x 189 mm
    Product weight (kg). 0.34
    System Specifications.
    Antenna. 4 dBi (Antenna Gain)
    EIRP (dBm). • 18.21 dBm (2412–2472 MHz) • 13.84 dBm (5150–5250 MHz) • 14.19 dBm (5250–5350 MHz) • 13.43 dBm (5470–5725 MHz) • 13.55 dBm (5745–5825 MHz)
    Encryption. Auto Encryption, WPA2-PSK_AES, WPA/WPA2-PSK_TKIP/AES
    Flash memory size. 16MB
    Frequency band. 2.4GHz (2412–2472 MHz), 5GHz (B1: 5150-5250 MHz, B2: 5250-5350 MHz, B3: 5470-5725 MHz, B4: 5745-5825 MHz)
    Indicators. ● Power
    ● WiFi
    Mount. Ceiling mount
    Operating modes. Gateway Mode, Repeater Mode, AP Mode, WISP Mode
    Port Configuration. 1 x 10/100BASE-TX WAN port (802.3at PoE IN), 1 x 10/100BASE-TX LAN port
    Power consumption. • 14.1 W (PoE, full load)
    • 8.51 W (DC, full load)
    Power supply. • 802.3at PoE • 12 VDC / 1.5 A, power adapter (optional)
    Power supply included. No
    RAM size. 128MB (DDR2)
    Standard. ● IEEE 802.3 10-BASE-T, Ethernet
    ● IEEE 802.3u 100BASE-TX, Fast Ethernet
    ● IEEE 802.11e Wi-Fi Multimedia (WMM)
    ● IEEE 802.3x Ethernet Flow Control
    ● IEEE 802.11i Wi-Fi Protected Access (WPA2)
    ● IEEE 802.11a,IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac
    ● IEEE802.3at Power over Ethernet is recommended
    Wireless channels. ● 2412-2472 MHz: CH 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13 ● 5150-5825MHz : CH 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 116, 120, 124, 128, 132, 140, 149, 153, 157, 161, 165
    Others.
    Approval and Compliance. CE, RoHS
    Operating humidity. 10% RH ~ 90% RH
    Operating temperature. -10°C ~ 40°C
    Storage humidity. 5% RH ~ 90% RH
    Storage temperature. -40°C ~ 70°C
    Package Contents. ● WAP-8121
    ● Screw Kit
    ● RJ45 Network Cable
    ● Quick Installation Guide
    ● Declaration of Conformity
    General.
    Color. White
    EAN. 4015867199190
    Model Number. WAP-8121
    Gpl download (26.93 MB)
    Qig download (1.41 MB)
    Ecdoc download (77.40 kB)
    Manual download (9.89 MB)
    Firmware download (11.46 MB)
    Pictures download (11.42 MB)
