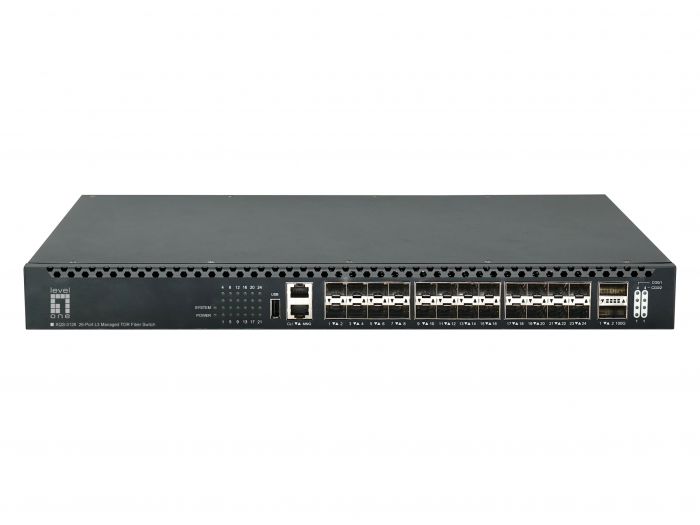

XQS-3126 26-Port L3 Managed TOR Fiber Switch, 24x 1G/10G SFP+, 2x 40G/100G QSFP28, Hot-Swap Redundant Power Supply
Model Number.
XQS-3126
SKU
57082603101
The LevelOne XQS-3126 is a high-performance, full Gigabit TOR switch optimized for demanding data center and cloud environments. Its advanced hardware architecture delivers industry-leading switching performance and low latency. Supporting wire-speed L2, L3, and L4 features, the XQS-3126 also offers essential network services like IPv6, traffic analysis, and virtualization. Built-in redundancy and uninterrupted operation mechanisms ensure maximum network uptime and reliability.
| Logistics Data. | |
|---|---|
| Harmonized System (HS) code. | 851762 |
| Customs product code (TARIC). | 8517620000 |
| Power. | |
| Power Redundancy. | Dual Power Supplies |
| General. | |
| Color. | Grey |
| EAN. | 4015867238479 |
| Model Number. | XQS-3126 |
| Features 1. | |
| Features. |
VLAN ● 4K VLAN IDs ● GVRP ● 1:1 and N:1 VLAN Mapping ● QinQ and selective QinQ ● Private VLAN MAC switching ● Static configuration and dynamic MAC learning ● MAC browsing and removal ● Configurable aging time of the MAC address ● Limited number of learnable MAC addresses ● MAC filtration ● Black-hole MAC list ● IEEE 802.1AE MacSec STP ● 802.1d STP, 802.1w RSTP, 802.1s MSTP ● BPDU protection, root protection and ring protection Multicast ● IGMP v1/v2c/v3 ● IGMP Snooping ● IGMP Fast Leave ● Multicast group policy and multicast number limit MVR ● PIM-SM, PIM-DM IPv4 ● Static routing, RIP v1/v2, OSPF, BGP ● Policy Based Routing(PBR) ● ECMP ● BFD for OSPF, BGP IPv6 ● ICMPv6, DHCPv6, ACLv6 and IPv6 Telnet ● IPv6 neighbor discovery ● Path MTU discovery ● IPv6 MLD v1/v2 MLD snooping ● MPLS ● IPv6 Static Routing, RIPng, OSPFv3, BGP4+ ● Manual tunnel, ISATAP tunnel, 6-to-4 tunnel MPLS ● MCE(Multi-VRF) QoS ● Traffic classification of port/L2~4 protocol headers ● CAR traffic control ● 802.1P/DSCP priority mapping and remark ● Multiple queuing algorithms such as SP, WRR or SP+WRR Tail-Drop, WRED ● Traffic supervision and traffic shaping ● Ingress and Egress ACL, supports matching L2, L3, L4 and IP quintuples, and performs replication, forwarding and discarding ● Hash same-source and same-destination load balancing to ensure session integrity of traffic output ● Hash-based load balancing algorithm to ensure session integrity Reliability ● Power 1+1 backup ● Static/LACP link aggregation ● EAPS, ERPS ● HSRP, VRRP ● GR for OSPF and BGP ● BFD for OSPF and BGP ● ISSU |
| Management. |
● Console, Telnet, SSH 2.0 ● Zero Touch Provisioning (ZTP) ● Web-GUI ● SNMP v1/v2c/v3 ● Upload and download of FTP/TFTP/SFTP files RMON event history ● Traffic statistical analysis such as sFLOW |
| Security. |
● L2~L4 ACL flow identification and filtering security mechanism ● DDoS attack prevention, TCP-SYN/UDP Flood attack prevention ● Suppression of multicast, broadcast, and unknown unicast packets ● Port isolation ● Port Security, IP+MAC+port binding ● DHCP Server ● DHCP Snooping, DHCP Option 82 ● IEEE 802.1x authentication ● Radius, Tacacs+ ● URPF ● Command line hierarchical protection |
| Miscellaneous. | |
| Grade. | Commercial |
| PoE Supported. | No |
| Manageable. | Yes |
| Fanless. | No |
| Concurrent ports. | Total 26.00 |
| Performance 2. | |
| Switching capacity. | 880 Gbps |
| Physical Specifications. | |
| Product weight (kg). | 4.25 |
| Dimensions (W x D x H). | 442.5 x 300 x 44.5 mm |
| System Specifications. | |
| Power supply. | Hot-Swappable AC |
| Data Rate. | 10Gbps |
| Power supply included. | Yes |
| Power input. | 100-240VAC, 50-60Hz, 2A MAX |
| Power consumption. |
● 26W (Standby) ● 64W (full loading on) |
| MTBF. | 200,000 hours |
| Heat dissipation. | 238.91 BTU/h |
| Packet forwarding rate. | 660 Mpps |
| Port Configuration. | 2x 40/100GbE QSFP28 Slot, 24x 1/10GbE SFP+ Slot, 1x RJ-45 10/100/1000BASE-T for management, 1x Console port for command-line interface (CLI), 1x USB-A data port |
| Standard. |
● IEEE 802.1D Spanning Tree Protocol (STP) ● IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) ● IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) ● IEEE 802.1Q VLAN ● IEEE 802.1v protocol-based VLAN ● IEEE 802.1x authentication ● IEEE 802.3ah Ethernet Link OAM ● IEEE 802.1ag Connectivity Fault Management and ITU-Y.1731 ● IEEE 802.3az ● IEEE 802.1AE MacSec ● IEEE 802.1P/DSCP priority mapping and remark ● Surge Protection (Level 4 – Industrial Standard): Supports differential mode surge up to 2kV and common mode surge up to 4kV, in compliance with industrial-grade protection requirements. |
| Acoustic noise (dB). | 57 dB |
| Mount. | 19" rack mount, Desk mount |
| Flash memory size. | 4096 MB |
| RAM size. | 2048 MB |
| MAC address table. | 128 K |
| Jumbo frame (KB). | 16 |
| Indicators. |
● POWER ● SYSTEM ● LINK/ACT |
| Packet buffer. | 4.5 MB |
| Backplane (Gbps). | 880 Gbps |
| Others. | |
| Approval and Compliance. |
● CE ● UKCA ● FCC Part 15, Subpart B ● RoHS |
| Operating humidity. | 10% RH ~ 90% RH |
| Operating temperature. | -10°C ~ 50°C |
| Storage humidity. | 5% RH ~ 95% RH |
| Storage temperature. | -20°C ~ 70°C |
| Package Contents. |
● XQS-3126 ● Power Cord ● Console Cable ● 19" Rack Mount Kit ● Rubber Feet ● Quick Installation Guide ● Declaration of Conformity |
