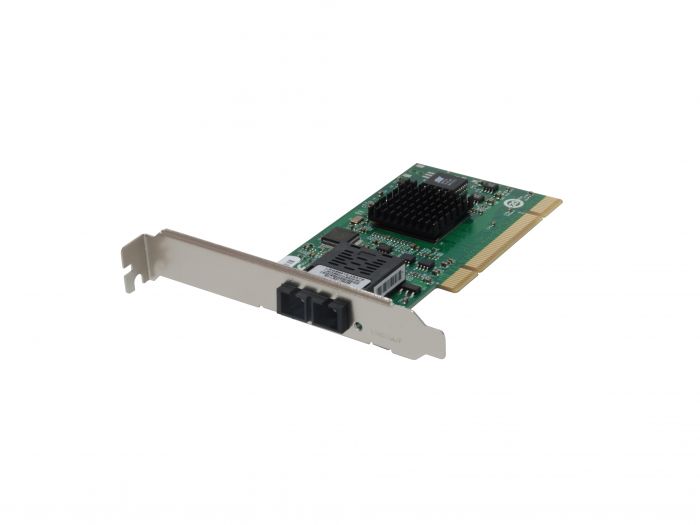

Tarjeta de red PCI de fibra Gigabit GNC-0107, 1 conector SC multimodo, 850 nm, 550 M
Número de modelo
GNC-0107
SKU
550107
La tarjeta de red Gigabit LevelOne GNC-0107 facilita la conectividad de alta velocidad dentro de una red de fibra óptica. La funcionalidad Wake-on-LAN permite el inicio y el apagado remotos, con un interruptor de suministro que verifica la tolerancia a fallas. La tarjeta de red admite bus PCI 1.0 y PCI 2.2 de 32 bits, además de admitir múltiples sistemas operativos.
| Port Configuration | |
|---|---|
| Gigabit multi-mode SC | 1 |
| Logistics Data. | |
| Código del Sistema Armonizado (SA) | 851762 |
| Código aduanero del producto (TARIC) | 8517620000 |
| Features 1. | |
| Características |
Full-height and low profile, screw-on brackets included with each adapter, for installation in high-density 1U and 2U servers Interrupt Moderation, Delivers increased performance while significantly reducing CPU utilization Large Send Off-load/TCP Segmentation Off-load, which enables wire speed performance with low CPU utilization Supply switch device for fault tolerance and checking, use for checking compliant,extent normal working time. |
| Miscellaneous. | |
| Interfaz de host | PCI |
| Tipo de tarjeta de red | Fibra óptica |
| System Specifications. | |
| Data Rate. | 1Gbps |
| Indicadores | Link/Activity; Full-duplex Activity LEDs |
| Chipset | Intel 82545EB |
| Longitud de onda (nm) | 850nm |
| Others. | |
| Aprobación y conformidad | CE FCC Class B�RoHS |
| Humedad de funcionamiento | 5% HR ~ 95% HR |
| Temperatura de funcionamiento | 0°C ~ 55°C |
| Sistemas operativos compatibles |
Windows XP/ Vista Windows 10 64-bit Windows 10 32-bit Windows 8.1 64-bit Windows 8.1 32-bit Windows 8 64-bit Windows 8 32-bit Windows 7 64-bit Windows 7 32-bit Windows Vista 64-bit Windows Vista 32-bit Windows Server 2012 Windows Server 2008 R2 Windows Server 2000/2003/2008 Windows 98/98SE/NT4.0/NT Windows CE/CE net5.0 Windows Server 2000 Microsoft Client for DOS NetWare 5.0 OpenUNIX 8.0(Caldera) UnixWare 7.x Novell ODI FreeBSD 4.7 to 5.x Intended for 2.2 through 2.6.x kernels Sun Solaris x86 |
| Contenido del paquete |
● GNC-0107 ● Low Profile Bracket ● Resource CD (Driver) ● Quick Installation Guide ● Declaration of Conformity |
| General. | |
| Color | Plata |
| EAN | 4015867142424 |
| Número de modelo | GNC-0107 |
| Physical Specifications. | |
| Dimensiones (An x Pr x Al) | 165 x 57.5 x 17 mm |
| Peso del producto (kg) | 0,07 |
