Transceptor SFP industrial monomodo SFP-4240 de 1,25 Gbps, 40 km, 1310 nm, de -40 °C a 85 °C
Número de modelo
SFP-4240
SKU
55110707301

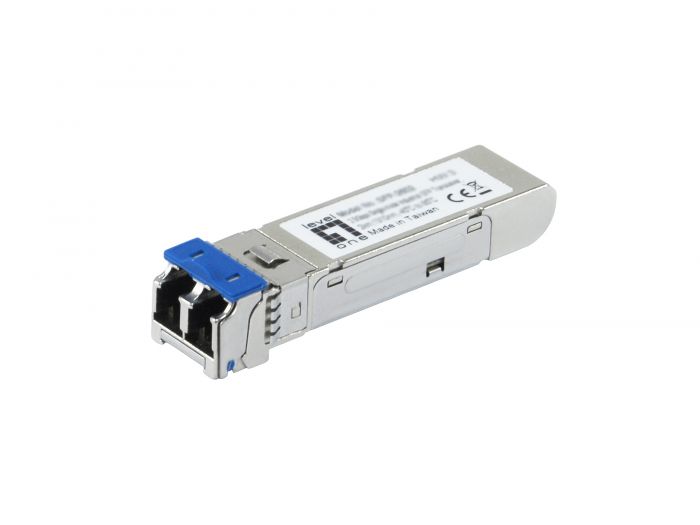

The levelOne SFP-4240 is a high performance and cost-effective single-mode SFP transceiver. Intended for use with Gigabit Ethernet, it provides up to 1.25 Gbps bidirectional data transfer rate on a single duplex fiber core. For use with 9 and 125 micron fiber cables, it can reach a distance of up to 40km. The SFP-4240 transceiver operates using a wavelength of 1310nm with a DFP Laser Diode light source and has an LC port.
This Hot-swappable SFP transceiver offers the latest Industrial standard in full-duplex Ethernet connectivity and withstand under wide range temperature operation.
| Logistics Data. | |
|---|---|
| Código del Sistema Armonizado (SA) | 851762 |
| Código aduanero del producto (TARIC) | 8517620000 |
| Features 1. | |
| Características |
• DDM (Digital Diagnostics Monitoring) • Hot-swappable |
| Miscellaneous. | |
| Modo de fibra óptica | Monomodo |
| Tipo de transceptor | SFP |
| Grado | Industrial |
| Performance 2. | |
| Sensibilidad del receptor | -24 dBm |
| System Specifications. | |
| Velocidad de datos | 1.25 Gbps |
| Potencia de transmisión óptica (dBm) | -2 to 3 dBm |
| Consumo de energía | 1000 mW |
| Longitud de onda (nm) | 1310 nm |
| Others. | |
| Aprobación y conformidad |
• CE • CB • FDA 21 CFR 1040.10 and 1040.11 • FCC 47 CFR PART 15 SUBPART B • TUV • UL • RoHS |
| Humedad de funcionamiento | 5% HR ~ 85% HR |
| Temperatura de funcionamiento | -40°C ~ 85°C |
| Humedad de almacenamiento | 5% HR ~ 85% HR |
| Temperatura de almacenamiento | -40°C ~ 85°C |
| Contenido del paquete |
• SFP-4240 • Quick Installation Guide • Declaration of Conformity |
| General. | |
| Color | Plata |
| EAN | 4015867240359 |
| Número de modelo | SFP-4240 |
| Physical Specifications. | |
| Dimensiones (An x Pr x Al) | 56.4 x 13.4 x 10.97 mm |
| Peso del producto (kg) | 0.015 |
