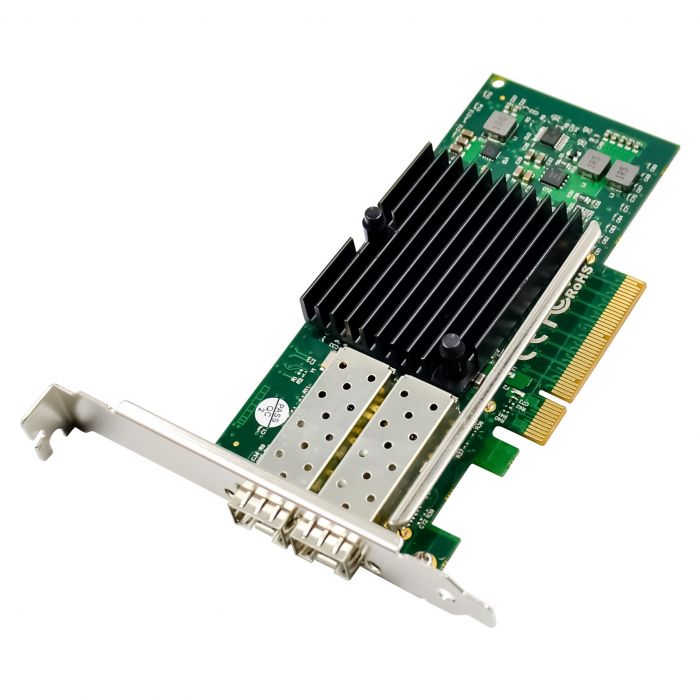

10-Gigabit-Glasfaser-PCIe-Netzwerkkarte, PCIe x8, 2 x SFP

Modellnummer
GNC-0202
SKU
55020207201
  • Complies with the 10 Gb/s Ethernet/802.3ae (XAUI) specification
  • Complies with the PCIe Base Specification 2.0 (5GT/s)
  • Complies with the Bus width — x1, x2, x4, x8
  • Supports Dual SFP+ Connectivity
  • Support for jumbo frames of up to 15.5 KB
  • TCP segmentation offload: up to 256 KB
  • 802.1q VLAN support
  • Built-in Wake-on-LAN feature to startup computers remotely


    • The LevelOne 10 Gigabit Fiber PCIe Network Card facilitates high-speed connectivity within a fiber-optic network, supporting Bus width x8-Lane PCI Express, Dual SFP+ Connectivity and Fibre Channel over Ethernet (FCoE). Wake-on-LAN functionality allows remote start-up, with iSCSI remote boot providing further flexibility. GNC-0202 also features Interrupt Throttling Control to Limit Maximum Interrupt Rate and Improve CPU Use, and is compatible with most network operating systems.

    More Information
    Logistics Data.
    Code des Harmonisierten Systems (HS) 851762
    Zolltariflicher Warencode (TARIC) 8517620000
    Miscellaneous.
    Host Interface. PCIe x8
    Network Card Type. Fiber Optics
    Physical Specifications.
    Dimensions (W x D x H). 70 x 16 x 115 mm
    Produktgewicht (kg) 0.107
    System Specifications.
    Data Rate. 10Gbps, 1Gbps
    Indikator Link/Activity
    Jumbo-Frames (KB) 15.5
    Chipsatz Intel 82599
    Standards 10GBASE-R Capable,
    10GBASE-X Capable,
    10GBASE-W Capable,
    10GBASE-BX4,
    10GBASE-CX4,
    10GBASE-LX4,
    10GBASE-KX4,
    10GBASE-T PHY,
    10GBASE-KR,
    1000BASE-BX,
    1000BASE-CX,
    1000BASE-KX,

    IEEE 802.3ae (XAUI),
    IEEE 802.3-2005 (Ethernet),
    IEEE 802.3ak,
    IEEE 802.3ap (KX/KX4/KR) specification,
    IEEE 802.1Qaz,
    IEEE 802.1Qbb,
    IEEE 802.1p,
    IEEE 802.1AS,
    IEEE 1588,
    IEEE 802.3 optical module MSAs,
    IEEE 802.1Q Virtual LANs (VLANs),
    IEEE 802.3ad Link Aggregation Control Protocol (LACP),
    IEEE 802.3x 100BASE-TX specification
    Others.
    Zulassungen und Konformität CE, RoHS
    Operating humidity. 5% RH ~ 90% RH
    Operating temperature. 0°C ~ 55°C
    Unterstützte Betriebssysteme Server2008 / Server2012 / Server2016 / Windows Vista / Win 7 / Win 8 / Win 8.1 / Win 10
    Storage humidity. 5% RH ~ 90% RH
    Storage temperature. -40°C ~ 70°C
    Lieferumfang GNC-0202,
    Low Profile Bracket,
    Quick Installation Guide,
    Resource CD (User Manual, Driver)
    General.
    Farbe Silver
    EAN 4015867224205
    Modellnummer GNC-0202
