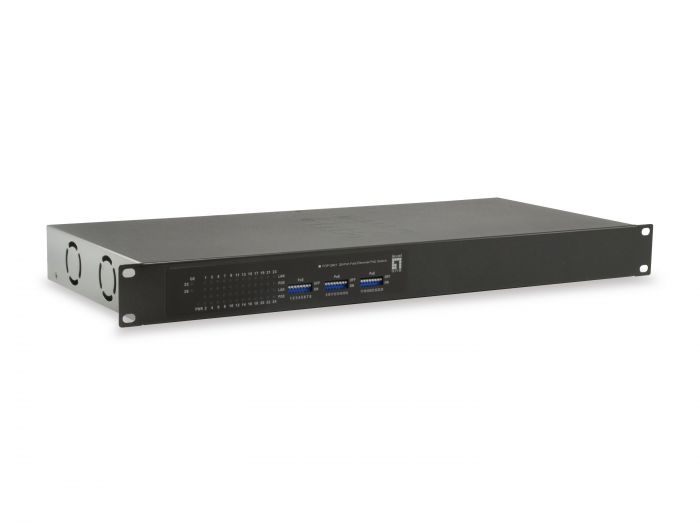

26-Port-Fast Ethernet-PoE-Switch, 24 PoE-Ausgänge, 2 x Gigabit RJ45, 150W
Modellnummer
FGP-2601W150
SKU
52087403
IEEE 802.3af/at PoE-konform, zur einfachen Bereitstellung und Installation
Leistungsschutz vor Überspannung, Überstrom und Überhitzung
IEEE-802.3x Flow-Control schützt vor Packet-Loss und sorgt für zuverlässige Datenübertragung
DIP-Schalter zur Steuerung der PoE-Aktivität aller Ports
19" Metallgehäuse
24 Fast Ethernet-PoE-Anschlüsse und 2 Gigabit-Ethernet-Ports
Bei der Serie LevelOne FGP-2601 handelt es sich um Unmanaged-PoE-Switches mit 24 RJ45 PoE-Ports. Die Switches sind IEEE 802.3af/at-konform und versorgen jedes beliebige PoE-Gerät über ein einziges Kabel mit Strom und Daten, mit einem Gesamtleistungsbudget von 150/250/380/500/630 W oder bis zu 30 W je Port. Sie sind ideal für Desktops und zudem in einem 19-Zoll-Rack montierbar, was eine noch komfortablere und flexiblere Installation ermöglicht. Die Switches FGP-2601 wurden für kleine bis mittlere Unternehmen entwickelt, die eine erschwingliche Lösung für ihre PoE-Infrastruktur benötigen.
| Port Configuration | |
|---|---|
| Fast-Ethernet Multi-Mode ST | 2 |
| 802.3af/at PoE | 24 |
| Logistics Data. | |
| Code des Harmonisierten Systems (HS) | 851762 |
| Zolltariflicher Warencode (TARIC) | 8517620000 |
| Miscellaneous. | |
| Grade. | Commercial |
| PoE Supported. | Yes |
| Manageable. | No |
| Fanless. | No |
| Concurrent ports. | 26,00 Total |
| PoE Power Budget. | 150,00 Total |
| Performance 2. | |
| Schaltleistung | 8.8Gbps |
| System Specifications. | |
| Data Rate. | 1Gbps, 100Mbps |
| Power supply included. | Ja |
| Standards |
IEEE 802.3 10-BASE-T (Ethernet) IEEE 802.3u 100-BASE-TX (Fast Ethernet) IEEE 802.3ab 1000BASE-T (Gigabit Ethernet) IEEE 802.3x Flow Control (full-duplex flow control) IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet PlusIEEE 802.3 10-BASE-T (Ethernet) IEEE 802.3u 100-BASE-TX (Fast Ethernet) IEEE 802.3ab 1000BASE-T (Gigabit Ethernet) IEEE 802.3x Flow Control (full-duplex flow control) IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet PlusIEEE 802.3 10-BASE-T (Ethernet) IEEE 802.3u 100-BASE-TX (Fast Ethernet) IEEE 802.3ab 1000BASE-T (Gigabit Ethernet) IEEE 802.3x Flow Control (full-duplex flow control) IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet PlusIEEE 802.3 10-BASE-T (Ethernet) IEEE 802.3u 100-BASE-TX (Fast Ethernet) IEEE 802.3ab 1000BASE-T (Gigabit Ethernet) IEEE 802.3x Flow Control (full-duplex flow control) IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet PlusIEEE 802.3 10-BASE-T (Ethernet) IEEE 802.3u 100-BASE-TX (Fast Ethernet) IEEE 802.3ab 1000BASE-T (Gigabit Ethernet) IEEE 802.3x Flow Control (full-duplex flow control) IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet PlusIEEE 802.3 10-BASE-T (Ethernet) IEEE 802.3u 100-BASE-TX (Fast Ethernet) IEEE 802.3ab 1000BASE-T (Gigabit Ethernet) IEEE 802.3x Flow Control (full-duplex flow control) IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet PlusIEEE 802.3 10-BASE-T (Ethernet) IEEE 802.3u 100-BASE-TX (Fast Ethernet) IEEE 802.3ab 1000BASE-T (Gigabit Ethernet) IEEE 802.3x Flow Control (full-duplex flow control) IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus |
| Ausgangsspannung | Per Port 56VDC, Max. 30 watts (802.3at) |
| Befestigung | 19" rack mount |
| Flash-Speichergröße | 512Kbit |
| MAC-Adresstabelle | 4K |
| Jumbo-Frames (KB) | 10 |
| Indikator | Power, Uplink, LAN 1~24 port, PoE 1~24 port |
| Backplane (Gbit/s) | 7.2 |
| Others. | |
| Zulassungen und Konformität |
FCC Class A, CE EMI: EN55032:2012+AC:2013 EN55022:2010+AC:2011 AS/NZS CISPR 22 Amdt. (2010) EN61000-3-2:2014 EN61000-3-3:2013 EMS: EN55024:2010 IEC61000-4-2:2008 IEC61000-4-3:2006+A1:2007+A2:2010 IEC61000-4-4:2012 IEC61000-4-5:2005 IEC61000-4-6:2013 IEC61000-4-8:2009 IEC61000-4-11:2004"FCC Class A, CE EMI: EN55032:2012+AC:2013 EN55022:2010+AC:2011 AS/NZS CISPR 22 Amdt. (2010) EN61000-3-2:2014 EN61000-3-3:2013 EMS: EN55024:2010 IEC61000-4-2:2008 IEC61000-4-3:2006+A1:2007+A2:2010 IEC61000-4-4:2012 IEC61000-4-5:2005 IEC61000-4-6:2013 IEC61000-4-8:2009 IEC61000-4-11:2004"FCC Class A, CE EMI: EN55032:2012+AC:2013 EN55022:2010+AC:2011 AS/NZS CISPR 22 Amdt. (2010) EN61000-3-2:2014 EN61000-3-3:2013 EMS: EN55024:2010 IEC61000-4-2:2008 IEC61000-4-3:2006+A1:2007+A2:2010 IEC61000-4-4:2012 IEC61000-4-5:2005 IEC61000-4-6:2013 IEC61000-4-8:2009 IEC61000-4-11:2004"FCC Class A, CE EMI: EN55032:2012+AC:2013 EN55022:2010+AC:2011 AS/NZS CISPR 22 Amdt. (2010) EN61000-3-2:2014 EN61000-3-3:2013 EMS: EN55024:2010 IEC61000-4-2:2008 IEC61000-4-3:2006+A1:2007+A2:2010 IEC61000-4-4:2012 IEC61000-4-5:2005 IEC61000-4-6:2013 IEC61000-4-8:2009 IEC61000-4-11:2004"FCC Class A, CE EMI: EN55032:2012+AC:2013 EN55022:2010+AC:2011 AS/NZS CISPR 22 Amdt. (2010) EN61000-3-2:2014 EN61000-3-3:2013 EMS: EN55024:2010 IEC61000-4-2:2008 IEC61000-4-3:2006+A1:2007+A2:2010 IEC61000-4-4:2012 IEC61000-4-5:2005 IEC61000-4-6:2013 IEC61000-4-8:2009 IEC61000-4-11:2004"FCC Class A, CE EMI: EN55032:2012+AC:2013 EN55022:2010+AC:2011 AS/NZS CISPR 22 Amdt. (2010) EN61000-3-2:2014 EN61000-3-3:2013 EMS: EN55024:2010 IEC61000-4-2:2008 IEC61000-4-3:2006+A1:2007+A2:2010 IEC61000-4-4:2012 IEC61000-4-5:2005 IEC61000-4-6:2013 IEC61000-4-8:2009 IEC61000-4-11:2004"FCC Class A, CE EMI: EN55032:2012+AC:2013 EN55022:2010+AC:2011 AS/NZS CISPR 22 Amdt. (2010) EN61000-3-2:2014 EN61000-3-3:2013 EMS: EN55024:2010 IEC61000-4-2:2008 IEC61000-4-3:2006+A1:2007+A2:2010 IEC61000-4-4:2012 IEC61000-4-5:2005 IEC61000-4-6:2013 IEC61000-4-8:2009 IEC61000-4-11:2004" |
| Operating humidity. | 10% RH ~ 90% RH |
| Operating temperature. | 0°C ~ 50°C |
| Storage humidity. | 10% RH ~ 90% RH |
| Storage temperature. | -20°C ~ 70°C |
| Lieferumfang |
FGP-2601W150 Stromkabel Bedienungsanleitung |
| General. | |
| Farbe | Schwarz |
| EAN | 4015867202791 |
| Modellnummer | FGP-2601W150 |
| Physical Specifications. | |
| Produktgewicht (kg) | 2,9 |
| Dimensions (W x D x H). | 440 x 200 x 40 mm |
