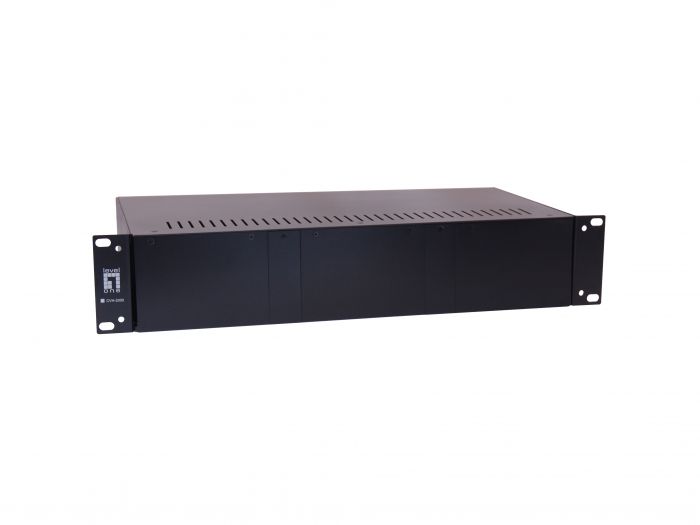

CVH-2000, 14-fach Mediakonverter-Gehäuse
Modellnummer
CVH-2000
SKU
540673
- Unterstützt 14 Steckplätze für verschiedene Arten von Medienkonvertern
- Redundante Netzversorgung durch zwei getrennte AC-Eingänge
- Konvertermodul Hot-Swapping-fähig
- Betriebstemperaturbereich von -10°C bis 55°C
The LevelOne CVH-2000 media converter chassis is able to host up to 14 media converters. The chassis supports LevelOne FVT-2001/2002/2201/2401 and GVT-2000/2001/2002 Media Converts. All converters are individually secured into the chassis and can be hot-swapped for maximum connection reliability.
The dual power supplies ensure continuous network operation. The Chassis is a standard 19-inch rack-mountable size that easily fits into a server rack.
| Logistics Data. | |
|---|---|
| Code des Harmonisierten Systems (HS) | 852990 |
| Zolltariflicher Warencode (TARIC) | 8529904000 |
| Others. | |
| Zulassungen und Konformität | CE, FCC Class A, RoHS |
| Operating humidity. | 20% RH ~ 80% RH |
| Operating temperature. | -10°C ~ 55°C |
| Storage humidity. | 5% RH ~ 90% RH |
| Storage temperature. | -40°C ~ 85°C |
| Lieferumfang |
• CVH-2000, • Power Cord • Module Brackets • Quick Installation Guide • Declaration of Conformity |
| General. | |
| Farbe | Schwarz |
| EAN | 4015867185124 |
| Modellnummer | CVH-2000 |
| Physical Specifications. | |
| Dimensions (W x D x H). | 427 x 315 x 91 mm |
| Produktgewicht (kg) | 0.45 |
| System Specifications. | |
| Power supply included. | Ja |
