FCS-3616, GEMINI Zoom IP Camera, 6-MP, Zoom, H.265,INDOOR/OUTDOOR
Modellnummer
FCS-3616
SKU
57308307101

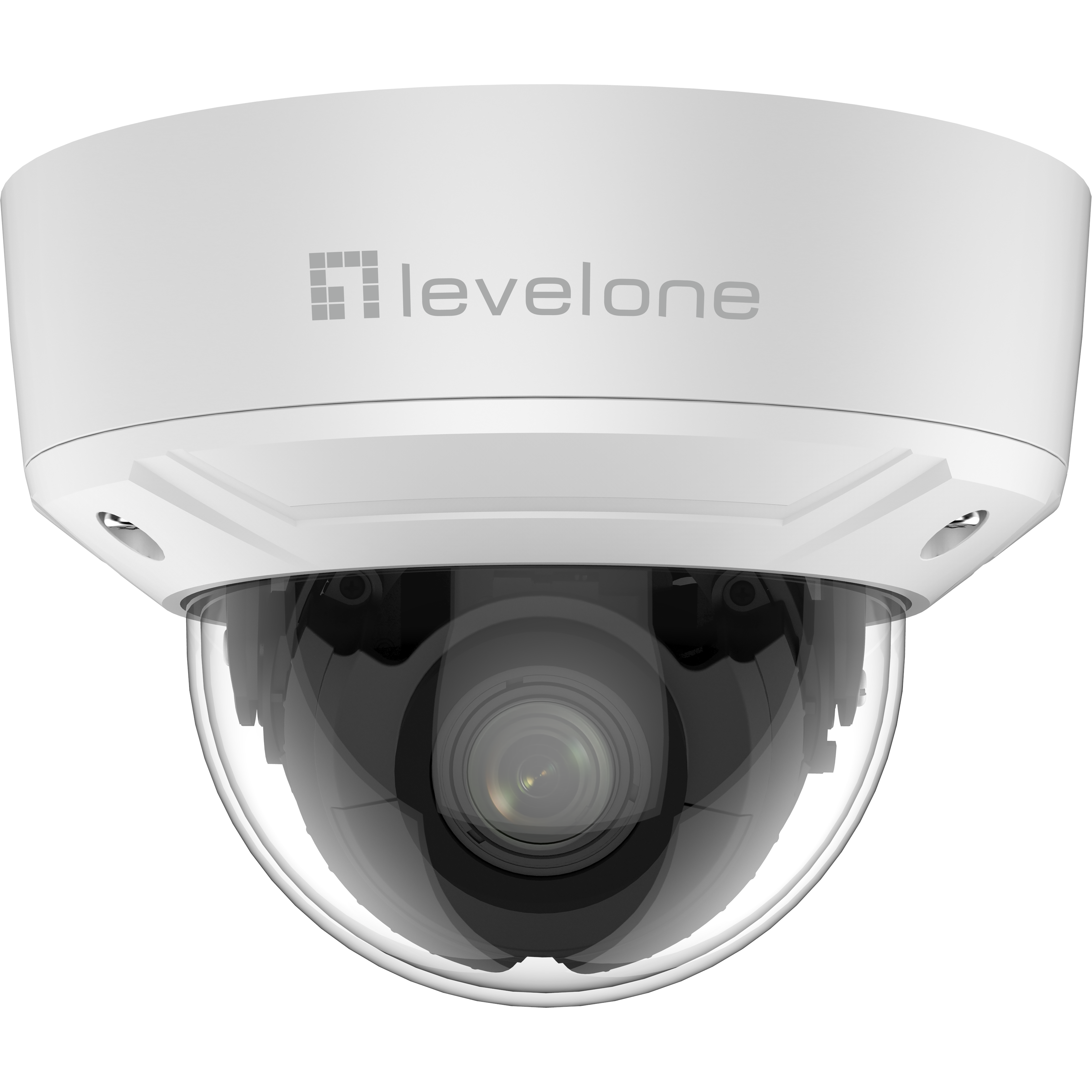

The LevelOne FCS-3616 Zoom Dome Outdoor Camera offers a highly reliable, cost-effective outdoor IP surveillance solution in a low-profile dome mounted casing, which is rated at IP66 and able to withstand outdoor operating conditions such as rain, snow, extreme heat, dust and humidity. The FCS-3616 offers 6-Megapixel resolution, and with 802.3af standard PoE, can use a single Cat.5 cable to run both power and data, making deployments easy and flexible. The dome mounting prevents malicious tampering with the camera, making it a secure and smart choice for all outdoor installations.
| Logistics Data. | |
|---|---|
| Code des Harmonisierten Systems (HS) | 852589 |
| Zolltariflicher Warencode (TARIC) | 8525890000 |
| Features 1. | |
| Features. |
Anti-flicker, heartbeat, mirror, password protection, privacy mask, Watermark Region of Interest:1 fixed region for main stream and sub-stream Saturation, brightness, contrast, sharpness, AGC, White balance adjustable by client software or web browser BLC, 3D DNR Basic Event : Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception Smart Event : Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle)), Scene change detection |
| Miscellaneous. | |
| 2-way audio. | Yes |
| DI/DO | Yes |
| IR LED for night vision. | Yes |
| Max. Resolution. | 6 Megapixels |
| Resistance. | Weatherproof, Vandalproof |
| IP Camera series. | GEMINI |
| Camera Type. | Dome |
| Zoom type. | Motorization |
| PoE Supported. | Yes |
| Physical Specifications. | |
| Dimensions (W x D x H). | Ø153.5 mm × 133.1 mm (Ø6.0" × 5.2") |
| Produktgewicht (kg) | 1.1 |
| System Specifications. | |
| Betrachtungswinkel | Horizontal FOV 106° to 35°, Vertical FOV 56° to 20°, Diagonal FOV 127° to 41° |
| Bildsensor | 1/2.4" Progressive Scan CMOS |
| Indikator | Power/Act |
| IR Sperrfilter | Ja |
| Infrarotdistanz in m | 40 Meter ,IR Wavelength 850 mm |
| Linse | Motorized lens, 2.8 to 12 mm |
| Minimale Beleuchtung (Lux) | Color: 0.003 Lux @ (F1.4, AGC ON), B/W: 0 Lux with IR |
| Befestigung | Ceiling mount |
| Port Configuration | Power( Ø5.5 mm coaxial power plug)/RJ-45/DIDO Terminal block ,12 VDC, 30 mA /Line IN /OUT (Terminal block), Input_(4.7 KΩ, 3.3 Vpp), Output (3.3 Vpp, 100 Ω) |
| Energieverbrauch |
12 VDC ± 25%, 0.88 A, max. 10.5 W, two-core terminal block, PoE: IEEE 802.3af, Class 3, max. 12.5 W |
| Power supply included. | Nein |
| Auflösung |
Main Stream 50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) Sub-Stream 50 Hz: 25 fps (1280 x 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 x 720, 640 × 480, 640 × 360) Third Stream 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) |
| Verschlusszeit | 1/3 s to 1/100, 000 s |
| Standards |
IEEE 802.3 10-BASE-T, Ethernet IEEE 802.3u 100-BASE-TX, Fast Ethernet IEEE 802.3af Power over Ethernet (PoE) IEEE 802.1X Network Access Control TCP(IPv6/v4), UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP,FTP,SAMBA UPnP, SNMP, Bonjour |
| Supported storage capacity. | 512 GB |
| Videoformat | H.265/H.264/MJPEG |
| Wetterfestigkeit | IP-66 |
| Others. | |
| Zulassungen und Konformität | CE/FCC |
| Operating humidity. | 5% RH ~ 95% RH |
| Operating temperature. | -30°C ~ 60°C |
| Inhalt des Pakets | Schrauben-Satz |
| Unterstützte Browser |
Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ |
| Lieferumfang |
QIG EcDoC Screw Kit |
| General. | |
| Farbe | Weiß |
| EAN | 4015867238509 |
| Modellnummer | FCS-3616 |
