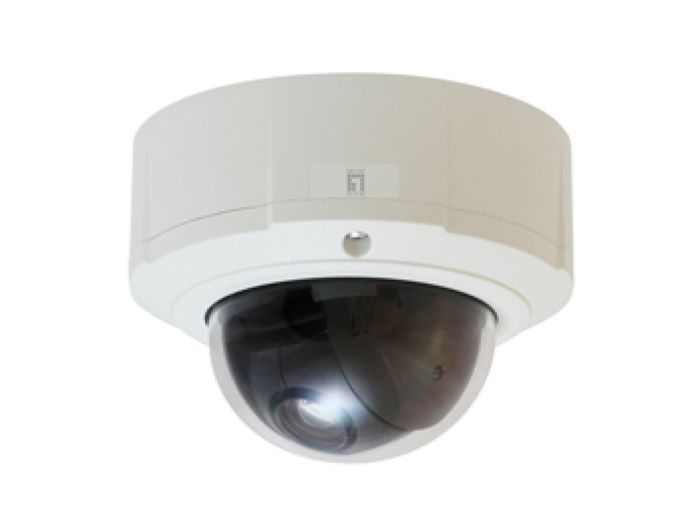

FCS-4043, HUBBLE PTZ Dome IP Network Camera, 3-Megapixel, 802.3af PoE, 10X Optical Zoom, two-way audio, Indoor/Outdoor
Modellnummer
FCS-4043
SKU
57104207201
- 3-Megapixel high-definition resolution
- Video compression: H.264, H.265, MJPEG
- Features WDR (Wide Dynamic Range) to enhance visibility under extremely bright or dark environments
- Supports 350° pan, 180° tilt and 10X optical zoom
- Dual power support: 12V DC/PoE (IEEE 802.3af)
- Weatherproof IP67-rated housing
- Removable IR-cut filter for day and night surveillance
- Built-in Micro SDHC/SDXC card slot for local storage
- Free surveillance and CMS (Central Management System) software packages with 64-channel license
The LevelOne FCS-4043 is a PTZ IP outdoor or indoor surveillance camera with a 3 megapixel resolution and a 10X optical zoom. In addition, the camera provides a motorized pan and tilt function, allowing it to focus in a variety of directions and magnify a particular viewing area. In addition, the camera supports PoE, enabling power and data transmission over a single Cat.5 cable, making deployment easy and efficient. An IP67 rated weatherproof enclosure allows for safe, reliable outdoor operation and withstands rain, heat, snow, dust and moisture.
| Logistics Data. | |
|---|---|
| Code des Harmonisierten Systems (HS) | 852589 |
| Zolltariflicher Warencode (TARIC) | 8525890000 |
| Features 1. | |
| Features. |
Video motion detection (10 included and excluded polygonal regions), External device through digital input, Tampering detection, Shock Detection, Sound detection, Video streams loss, System log buffer overrun, Remove system log, Logon events (Login Failure, Login Success, Block an Account) Notify control center, Go to PTZ preset point or preset tour, Change camera settings, Command other devices, E-mail notification with snapshots, Push notification to mobile device, Save video to local storage, Upload video to NVR server, Upload video or snapshot to FTP server, Activate external device through digital output |
| Miscellaneous. | |
| 2-way audio. | Yes |
| DI/DO | Yes |
| IR LED for night vision. | Yes |
| Max. Resolution. | 3 Megapixels |
| Resistance. | Weatherproof, Vandalproof |
| IP Camera series. | HUBBLE |
| Camera Type. | Dome |
| Zoom type. | Motorization |
| PoE Supported. | Yes |
| Physical Specifications. | |
| Dimensions (W x D x H). | 152.8x152.8x131mm |
| Produktgewicht (kg) | 1.5 |
| System Specifications. | |
| Betrachtungswinkel | 49.56 - 5.62° |
| Audioformat | 8 kHz, 16 bit encoding, Mono, PCM, G.711 |
| Bildsensor | Progressive Scan CMOS,1/2.8 " , 2065(H) X 1553(V) (3.21 MP) |
| Indikator |
Power Link ACT |
| IR Sperrfilter | Nein |
| Linse | DC iris ,Zoom, f4.7-47mm ,10x optical zoom |
| Minimale Beleuchtung (Lux) | Color: 0.05 lux at F1.6; B/W: 0.002 lux at F1.6 |
| Befestigung | Ceiling mount |
| Schwenkbereich | -175°~175° |
| Port Configuration | DI/DO, Audio in/Audio Out, Power (terminal black) |
| Energieverbrauch | 12Watt |
| Power supply included. | Nein |
| Auflösung |
Maximum Frame Rate vs. Resolution 30 fps at 2048 x 1536 30 fps at 1920 x 1080 30 fps at 1280 x 960 30 fps at 1280 x 720 30 fps at 800 x 600 30 fps at 640 x 480 30 fps at 320 x 240 |
| Verschlusszeit | 1/5-1/64000 second (manual mode); 1/5-1/64000 second (auto mode) |
| Standards |
IEEE 802.3 10-BASE-T, Ethernet IEEE 802.3u 100-BASE-TX, Fast Ethernet IEEE 802.3af Power over Ethernet (PoE) IEEE 802.1X Network Access Control TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour |
| Supported storage capacity. | 256 GB |
| Neigungsbereich | 1.6° - 32°/second |
| Videoformat | H.265/H.264/MJPEG |
| Wetterfestigkeit | IP67 |
| Others. | |
| Zulassungen und Konformität | CE/FCC |
| Kompatibilität | Onvif |
| Operating humidity. | 0% RH ~ 90% RH |
| Operating temperature. | -30°C ~ 60°C |
| Unterstützte Browser | Microsoft Edge at IE mode , IE 11, Google Chrome, Apple Safari |
| Unterstützte Betriebssysteme | Windows |
| Storage humidity. | 5% RH ~ 95% RH |
| Storage temperature. | -40°C ~ 70°C |
| General. | |
| Farbe | Weiß |
| EAN | 4015867225226 |
| Modellnummer | FCS-4043 |
