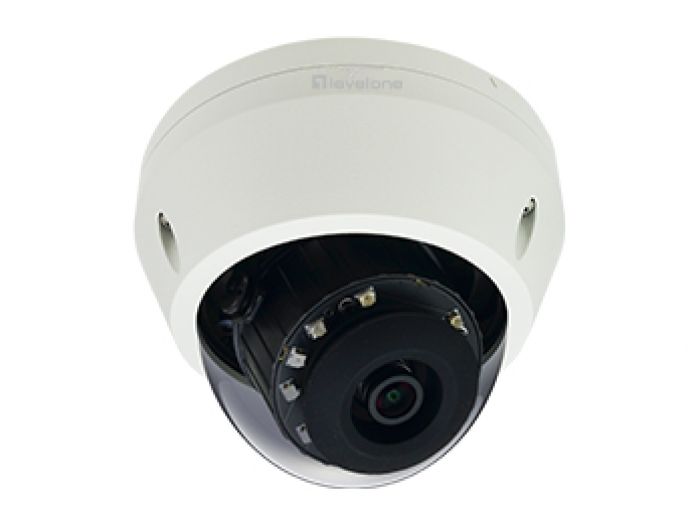

HUBBLE Feste-Dom-IP-Netzwerk-Kamera, H.265, 5 Megapixel, 802.3af PoE, IR-LEDs, Innen / Außen, Vandalensicher
Modellnummer
FCS-3307
SKU
57302507
5-Megapixel HD-Auflösung
Video Komprimierung: H.264, H.265
Integrierte IR-LEDs für den Einsatz bei Nacht mit bis zu 30 m Reichweite
WDR-Funktion (Wide Dynamic Range) zur Verbesserung des Bilds bei extreme dunkler oder heller Umgebung
Wettergeschütztes IP-68 Gehäuse
Vandalensicheres, IK10-eingestuftes Gehäuse
Stromversorgung durch 12VDC Netzteil oder PoE (IEEE 802.3af)
Die Fixkuppelkamera LevelOne FCS-3307 für den Außenbereich bietet eine besonders zuverlässige, kostengünstige Outdoor-IP-Überwachungslösung in einem flachen Kuppelgehäuse, das IP68-bewertet ist und Außenbedingungen wie Regen, Schnee, extremer Hitze, Staub und Feuchtigkeit standhält. Die FCS-3307 bietet 5-Megapixel-Auflösung, und mit dem 802.3af-Standard PoE können Sie über ein einziges Cat.5-Kabel Strom und Daten übertragen, was den Einsatz einfach und flexibel gestaltet. Die Kuppelmontage verhindert eine böswillige Manipulation des Geräts. Das Ergebnis ist eine sichere und intelligente Wahl für alle Außenbereiche.
Logistics Data. | |
---|---|
Code des Harmonisierten Systems (HS) | 852589 |
Zolltariflicher Warencode (TARIC) | 8525890000 |
Features 1. | |
Features. | Object Based Motion Detection, Tamper, Shock Detection, Line Crossing*, Enter Area*, Missing Object*, Unattended Object*, Loitering*, Smoke Detection, Fire Detection* (Some of the algorithms may not be available in the first release, can be upgraded for free later) |
Miscellaneous. | |
2-way audio. | Yes |
DI/DO | Yes |
IR LED for night vision. | Yes |
Max. Resolution. | 5 Megapixels |
Resistance. | Weatherproof |
IP Camera series. | HUBBLE |
Camera Type. | Dome |
Zoom type. | Fixed |
PoE Supported. | Yes |
System Specifications. | |
Betrachtungswinkel | 120 |
Audioformat | 8 kHz, 16 bit encoding, Mono, PCM, G.711 |
Bildsensor | 1/2.9 "Progressive Scan CMOS |
Indikator | Power |
IR Sperrfilter | Ja |
Infrarotdistanz in m | Up to 30 meter |
Linse | Fixed focal, f2.1mm, F1.8 |
Minimale Beleuchtung (Lux) | Color: 0.1 lux at F1.8 (30 IRE, 2400 K); B/W: 0 lux at F1.8 (IR LED on) |
Energieverbrauch | 12.95 W (PoE) |
Stromversorgung | VDC12V,PoE 802.3af |
Power supply included. | Nein |
Auflösung |
30 fps at 2592 x 1944 30 fps at 2048 x 1536 30 fps at 1920 x 1080 30 fps at 1280 x 960 30 fps at 1280 x 720 30 fps at 800 x 600 30 fps at 640 x 480 30 fps at 320 x 240 |
Verschlusszeit | 1/5-1/64000 second |
Standards |
IEEE 802.3 10-BASE-T, Ethernet IEEE 802.3u 100-BASE-TX, Fast Ethernet IEEE 802.3af Power over Ethernet (PoE) IEEE 802.3at Power over Ethernet (PoE+) TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv4/v6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour,Multicast,Ssupports 802.1x |
Supported storage capacity. | 32 GB |
Videoformat | H.265/H.264/MJPEG |
Others. | |
Zulassungen und Konformität | CE/FCC/UL,IK10,IP68 |
Operating temperature. | -40°C ~ 60°C |
Unterstützte Browser | IE 9.0 or newer, Firefox with VLC, Chrome with VLC, Safari with QuickTime |
Storage temperature. | 0°C ~ 80°C |
Lieferumfang |
FCS-3307 Screw Kit Resource CD (User Manual, Utility, 64-CH Monitoring Software) |
General. | |
Farbe | Weiß |
EAN | 4015867202746 |
Modellnummer | FCS-3307 |
Physical Specifications. | |
Dimensions (W x D x H). | 115 x 115 x 87 mm |
Produktgewicht (kg) | 0,835 |
