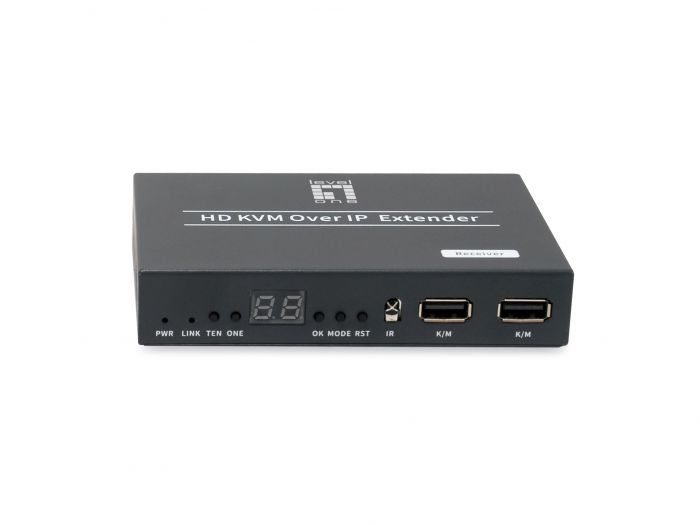

HVE-6701R, HDMI over IP PoE Receiver (R), 150 Meter
The HVE-670 Series riches HDMI signal broadcasting connectivity options from small scaled home theatres, retail stores, up to large scaled public premises such as transportation hubs, leisure educational facilities, corporate premises and more.Powerful Distribution Capabilities.
The pioneering LevelOne HVE-670 system expands HD digital content reachability. Allowing multiple sources extend to more than 99 group displays in LAN without limit by cascading managed switches.The solution is highly flexible that Point-to-Point or Point-to-Many topologies could be conveniently arranged. And to meet wider range of application requirement, HVE-670 Series offers options to be powered by PoE or external power supplying unit.
Additionally, video sources could be distributed per preset display group via easily hardware adjustment of Button .
| Logistics Data. | |
|---|---|
| Code des Harmonisierten Systems (HS) | 854370 |
| Zolltariflicher Warencode (TARIC) | 8517620000 |
| General. | |
| Farbe | Schwarz |
| EAN | 4015867239063 |
| Modellnummer | HVE-6701R |
| Physical Specifications. | |
| Dimensions (W x D x H). | 119*81.7*23mm |
| Produktgewicht (kg) | 0.2 |
| System Specifications. | |
| Port Configuration | HDMI, IR(3.5mm ),RS-232, RJ-45, Power ,USB 1.1(Type A) |
| Energieverbrauch | MAx: 3.3W |
| Eingangsspannung |
The power adapter: DC 12V POE input voltage range:36~57V |
| Power supply included. | Ja |
| Auflösung | 1920x1080 @60Hz |
| Standards |
IR interface : 3.5mm IR Frequency :20-60KHz |
| Video Bandwidth. |
Max Bandwidth :16 Mbps HDMI Bandwidth :Max 6.75Gbps /Max clock 165MHz |
| Others. | |
| Zulassungen und Konformität | CE/FCC |
| Operating humidity. | 5% RH ~ 90% RH |
| Operating temperature. | -5°C ~ 55°C |
| Lieferumfang |
Power adapter IR (RX) QIG |
