HVE-9114T 4-Port HDMI over Cat.5 Transmitter, 300
Modellnummer
HVE-9114T
SKU
59091403

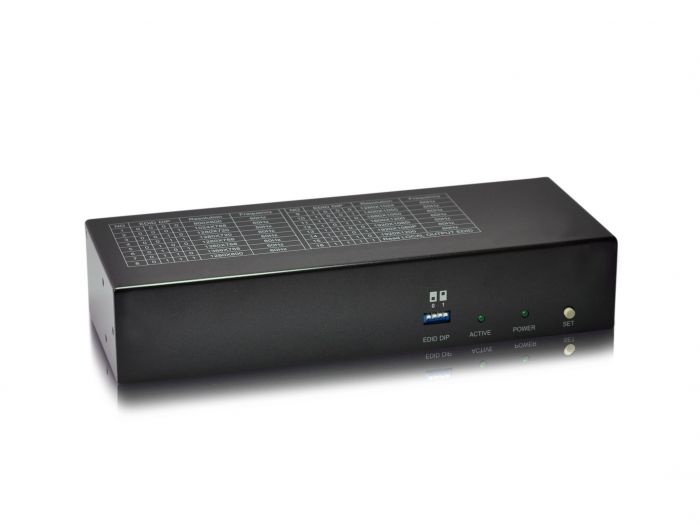

The LevelOne HVE-91 HDMI Extender series offers a ground-breaking solution for long range HDMI deployments, extending the range of Ultra/Full HD (4K/1080P) signal broadcasts up to 300 metres from the source. HDMI signals are distributed over Ethernet cables between the transmitters and receivers, providing a crystal-clear, high-definition signal without the expense of using optical fiber.The HVE-91 series features an in-built 4K Ultra HD video scaler, revolutionary technology which enables the user to find the optimal signal, regardless of the input specifications.The LevelOne HVE-9114T is a HDMI Transmitter with 1 HDMI local output port and 4 link ports for connecting to 4 receivers.
| Logistics Data. | |
|---|---|
| Code des Harmonisierten Systems (HS) | 851762 |
| Zolltariflicher Warencode (TARIC) | 8517620000 |
| General. | |
| Farbe | Schwarz |
| EAN | 4015867192870 |
| Modellnummer | HVE-9114T |
| Physical Specifications. | |
| Dimensions (W x D x H). | 85 x 220 x 44 mm |
| Produktgewicht (kg) | 0,6 |
| System Specifications. | |
| Energieverbrauch | 800mA |
| Power supply included. | Ja |
| Auflösung | 1920 x 1200@60Hz/1080P (Local HDMI output) |
| Video Bandwidth. | 25MHz - 340MHz |
| Others. | |
| Operating humidity. | 10% RH ~ 80% RH |
| Operating temperature. | 0°C ~ 50°C |
| Lieferumfang |
HVE-9114T Power Adapter Power Cord Quick Installation Guide |
Download PDF
