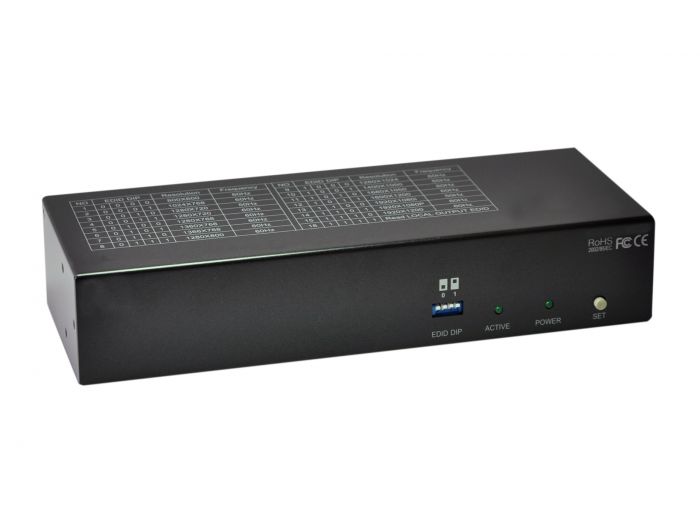

HVE-9118T HDMI over Cat.5 Transmitter, 300m,
Modellnummer
HVE-9118T
SKU
59091603
The LevelOne HVE-91 HDMI Extender series offers a ground-breaking solution for long range HDMI deployments, extending the range of Ultra/Full HD (4K/1080P) signal broadcasts up to 300 metres from the source. HDMI signals are distributed over Ethernet cables between the transmitters and receivers, providing a crystal-clear, high-definition signal without the expense of using optical fiber.The HVE-91 series features an in-built 4K Ultra HD video scaler, revolutionary technology which enables the user to find the optimal signal, regardless of the input specifications.The LevelOne HVE-9118T is a HDMI Transmitter with 1 HDMI local output port and 8 link ports for connecting to 8 receivers.
| Logistics Data. | |
|---|---|
| Code des Harmonisierten Systems (HS) | 851762 |
| Zolltariflicher Warencode (TARIC) | 8517620000 |
| General. | |
| Farbe | Schwarz |
| EAN | 4015867201831 |
| Modellnummer | HVE-9118T |
| Physical Specifications. | |
| Dimensions (W x D x H). | 90 x 220 x 45 mm |
| Produktgewicht (kg) | 0,612 |
| System Specifications. | |
| Energieverbrauch | 900mA |
| Power supply included. | Ja |
| Auflösung | Up to 1920 x1200@ 60Hz |
| Video Bandwidth. | 25MHz - 340MHz |
| Others. | |
| Operating humidity. | 10% RH ~ 80% RH |
| Operating temperature. | 0°C ~ 50°C |
| Lieferumfang |
HVE-9118T Power Adapter Quick Installation Guide |
Download PDF
