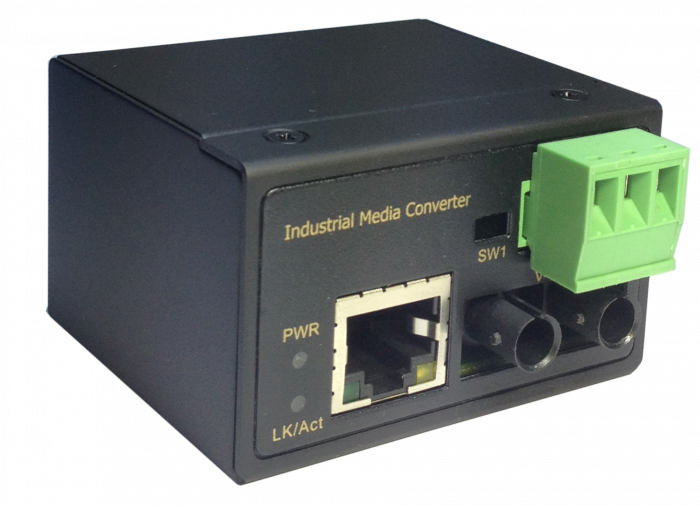

IEC-4002 Fast-Ethernet RJ45 zu ST Industrieller Mediakonverter, Multi-Mode Glasfaser, 2km, -40°C bis 75°C
Modellnummer
IEC-4002
SKU
555535
- Überträgt Daten von 10/100Base-TX-Kupfer- zu Glasfaserschnittstellen
- Multimode-Glasfasern mit ST-Anschluss zur Übertragung auf bis zu 2 km
- Integrierte LFP- (Link Fault Pass-through) (LLCF/LLR) Technologie
- Schutz vor Überspannungen und statischen Ladungen
- Bietet DIN-Schienen- oder Panel-Montage
- Betriebstemperaturbereich von -40°C bis 75 °C
LevelOne IEC-4002 is an industrial Fast Ethernet media converter with a mini size, rugged aluminium case which providing superb heat dissipation. This converter is designed to be mounted on an industrial standard DIN-rail, as well as on the wall, plus the clearly visible status LEDs provide simple monitoring of port link activity. It also features Link Fault Pass Through in order to alert remote location when link status changes.
| Port Configuration | |
|---|---|
| Fast-Ethernet RJ45 | 1 |
| Logistics Data. | |
| Code des Harmonisierten Systems (HS) | 851762 |
| Zolltariflicher Warencode (TARIC) | 8517620000 |
| Features 1. | |
| Features. |
DIP Switch: Link Fault Pass Through (LFP) Enable / Disable Switch Converter / Pure Converter mode |
| Miscellaneous. | |
| Fiber Optical Mode. | Multi-Mode |
| Media Interface. | RJ45 to MMF ST |
| PoE Supported. | No |
| Manageable. | No |
| Grade. | Industrial |
| System Specifications. | |
| Data Rate. | 100Mbps |
| Indikator | Power, Speed (TP), Link / Act (TP & Fibre) |
| Befestigung | DIN rail mount |
| MTBF | 510,340(hr) |
| Port Configuration | 1*10/100 Mbps,1*10/100 Mbps SC Fiber |
| Eingangsspannung |
Power Consumption: 1.44W Power Input: 12 to 60VDC or 18 to 36VAC (Terminal Block) |
| Power supply included. | Nein |
| Standards |
IEEE 802.3 10-BASE-T, Ethernet IEEE 802.3u 100-BASE-TX, Fast Ethernet IEEE 802.3u 100-BASE-FX, Fast Ethernet IEEE 802.3x Flow Control and Back Pressure |
| Übertragungsmethode |
Store and forward (Default) pass through Maximum optical Output /dBm : (62.5/125um) -20 ,(50/125um) -23.5 Maximum optical Input/dBm (range): -34 |
| Wellenlänge (nm) | 1310 |
| Others. | |
| Operating humidity. | 5% RH ~ 95% RH |
| Operating temperature. | -40°C ~ 75°C |
| Lieferumfang |
IEC-4002, Quick Installation Guide |
| General. | |
| Farbe | Schwarz |
| EAN | 4015867188156 |
| Modellnummer | IEC-4002 |
| Physical Specifications. | |
| Dimensions (W x D x H). | 59 x 49 x 36 mm |
| Produktgewicht (kg) | 0,09 |
