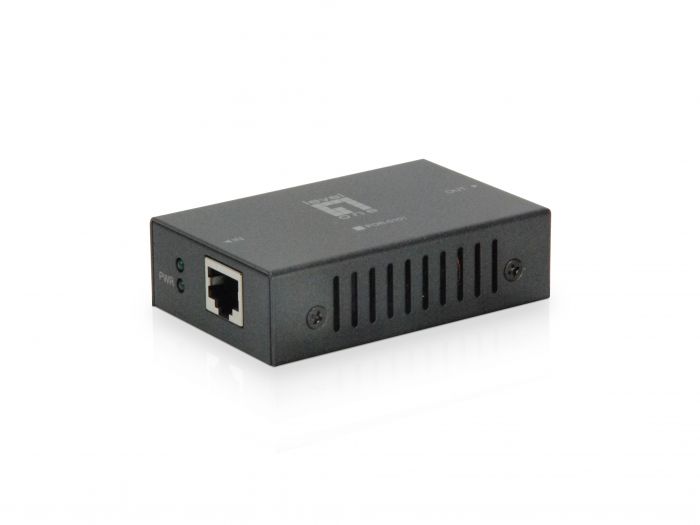

PoE-Repeater, 802.3at/af PoE
Modellnummer
POR-0101
SKU
55205507
802.3af/802.3at/High-Power PoE an Remote-Gerät
Erweiterte PoE-Verbindung für weitere 100 Meter
Einfache Plug-and-Play-Installation
Keine zusätzliche Stromversorgung erforderlich
For system integrators looking for a professional solution to help extend their PoE network, POR-0101 is the perfect accessory to increase your Power over Ethernet network performance. LevelOne POR-0101, a 1-Port PoE Repeater requiring neither configuration nor electrical power, is an innovative transmitter to pass on both data and power extend to another 100 meters. The delivery though one PoE port and one non-PoE port are adequate to extend network devices such as WLAN Access Points, Network Cameras and other appliances with high-speed to the network for greater deployment flexibility.
Port Configuration | |
---|---|
Fast-Ethernet RJ45 | 2 |
Logistics Data. | |
Code des Harmonisierten Systems (HS) | 851762 |
Zolltariflicher Warencode (TARIC) | 8517620000 |
System Specifications. | |
Data Rate. | 100Mbps |
Indikator | Power, PoE In, PoE Out |
Befestigung | Wall mount |
Cascadable. | Nein |
Standards |
IEEE 802.3 10Base-T, Ethernet IEEE 802.3u 100Base-TX, Fast Ethernet IEEE 802.3x Ethernet Flow Control IEEE 802.3af Power over Ethernet (PoE) IEEE 802.3at Power over Ethernet Plus (PoE+)IEEE 802.3 10Base-T, Ethernet IEEE 802.3u 100Base-TX, Fast Ethernet IEEE 802.3x Ethernet Flow Control IEEE 802.3af Power over Ethernet (PoE) IEEE 802.3at Power over Ethernet Plus (PoE+) |
Others. | |
Operating humidity. | 5% RH ~ 95% RH |
Operating temperature. | 0°C ~ 50°C |
Lieferumfang |
POR-0101 Quick Installation Guide |
General. | |
Farbe | Grey |
EAN | 4015867191279 |
Modellnummer | POR-0101 |
Physical Specifications. | |
Dimensions (W x D x H). | 80 x 70 x 23 mm |
Produktgewicht (kg) | 0,2 |
