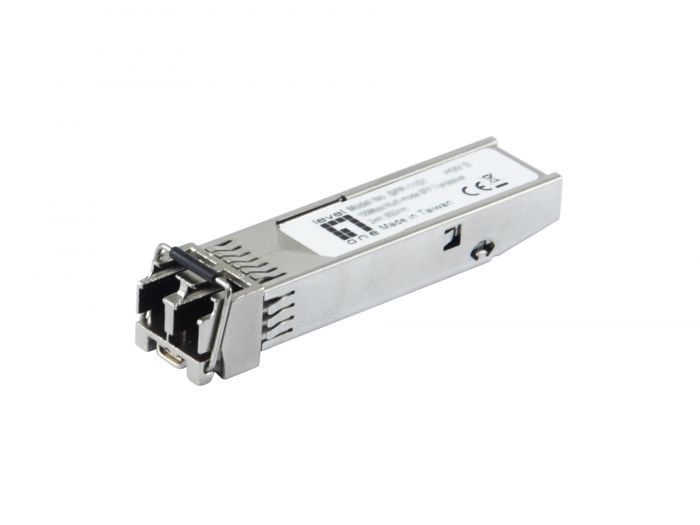

SFP-4200 1.25Gbps Multi-mode Industrial SFP Transceiver, 550m, 850nm, -40°C to 85°C
Modellnummer
SFP-4200
SKU
55110507301
The levelOne SFP-4200 is a high performance and cost-effective multi-mode Industrial SFP transceiver. Intended for use with Gigabit Ethernet, it provides up to 1.25 Gbps bi-directional data transfer rate on a single duplex fiber core. For use with 50 and 125 micron fiber cables, it can reach a distance of up to 550 meters. The SFP-4200 transceiver operates using a wavelength of 850nm with a VCSEL Laser Diode light source and has an LC port.
This Hot-swappable SFP transceiver offers the latest Industrial standard in full-duplex Ethernet connectivity and withstand under wide range temperature operation.
| Logistics Data. | |
|---|---|
| Code des Harmonisierten Systems (HS) | 851762 |
| Zolltariflicher Warencode (TARIC) | 8517620000 |
| General. | |
| Farbe | Silver |
| EAN | 4015867240335 |
| Modellnummer | SFP-4200 |
| Features 1. | |
| Features. |
• DDM (Digital Diagnostics Monitoring) • Hot-swappable |
| Miscellaneous. | |
| Fiber Optical Mode. | Multi-Mode |
| Transceiver Type. | SFP |
| Grade. | Industrial |
| Performance 2. | |
| Empfangsempfindlichkeit (dBm) | -20 dBm |
| Physical Specifications. | |
| Dimensions (W x D x H). | 56.4 x 13.4 x 10.97 mm |
| Produktgewicht (kg) | 0.018 |
| System Specifications. | |
| Datenrate | 1.25 Gbps |
| Optische Sendeleistung (dBm) | -10 to -3 dBm |
| Energieverbrauch | 1000 mW |
| Wellenlänge (nm) | 850 nm |
| Others. | |
| Zulassungen und Konformität |
• CE • CB • FDA 21 CFR 1040.10 and 1040.11 • FCC 47 CFR PART 15 SUBPART B • TUV • UL • RoHS |
| Operating humidity. | 5% RH ~ 85% RH |
| Operating temperature. | -40°C ~ 85°C |
| Storage humidity. | 5% RH ~ 85% RH |
| Storage temperature. | -40°C ~ 85°C |
| Lieferumfang |
• SFP-4200 • Quick Installation Guide • Declaration of Conformity |
